OptiMate 4 Quad Program: GOLD series 12V 1.25A lead-acid & lithium battery saving charger, tester & maintainer

The OptiMate4 Quad Program (model : TM630) is a fully sealed 12V motorcycle battery saving, charger, tester and maintainer that delivers 1.25 Amps of charge safely to the 12V lead-acid or 12.8V LFP / LiFePO4 Lithium battery in your motocross, adventure, street or cruiser motorcycle or your ATV/UTV.

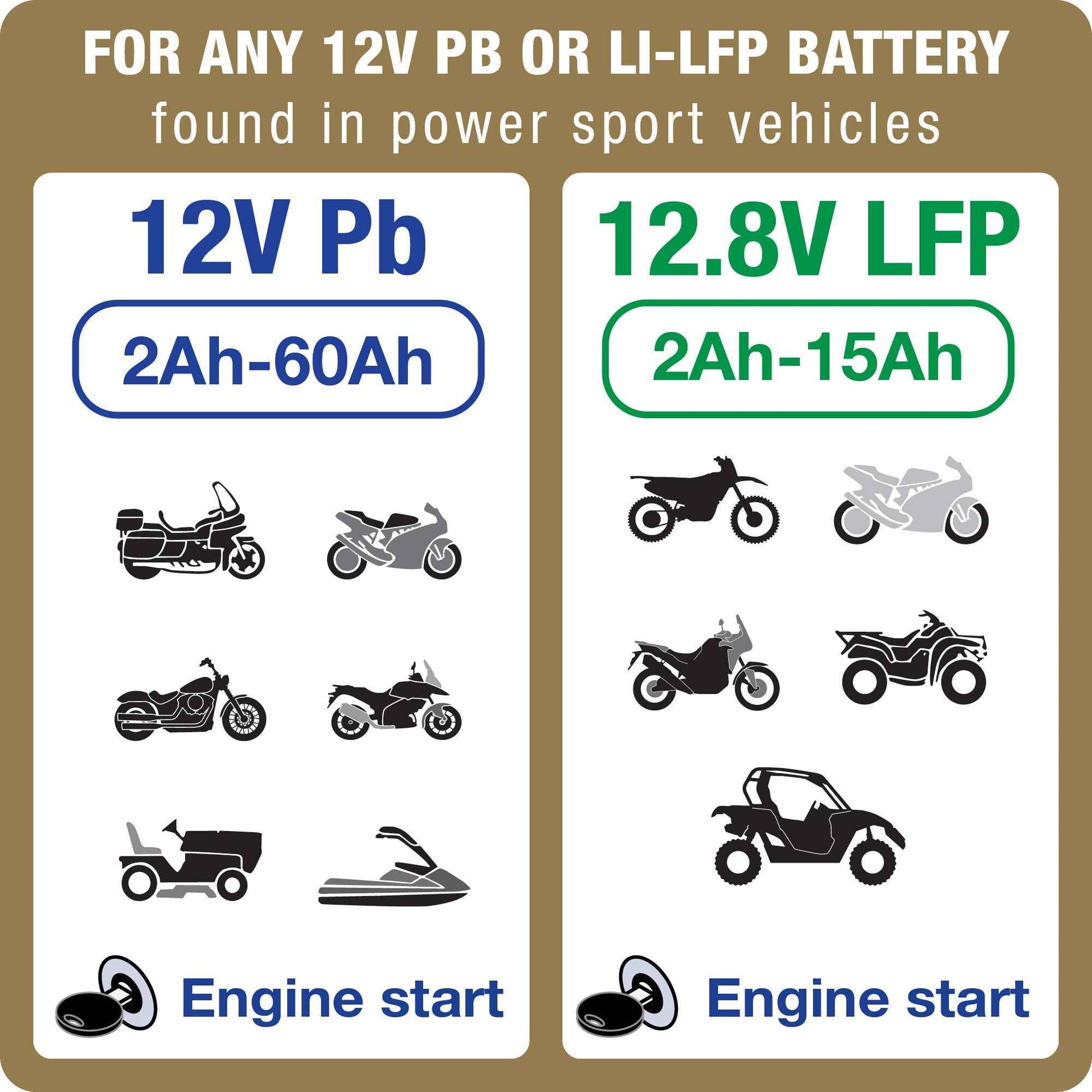

This ultimate motorcycle battery charger comes with a handlebar hanging hook to position the charger off the floor and visible, with the four user-selectable charging programs able to charge any 12V motorcycle, ATV or UTV / powersport battery. Two programs are specially for BMW motorcycles, allowing charge and maintenance of the BMW Motorrad battery via the CAN-bus controlled 12V socket on the bike.

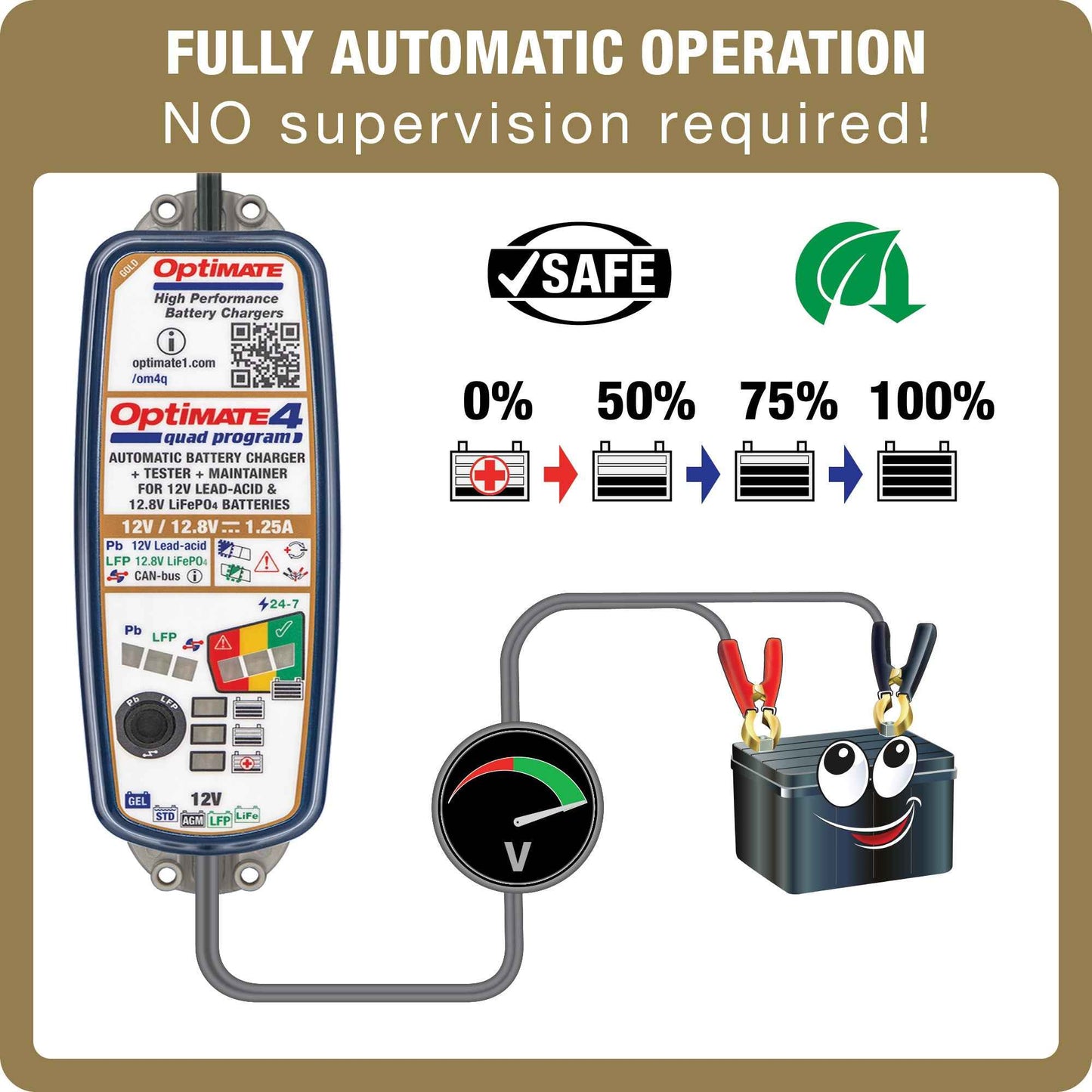

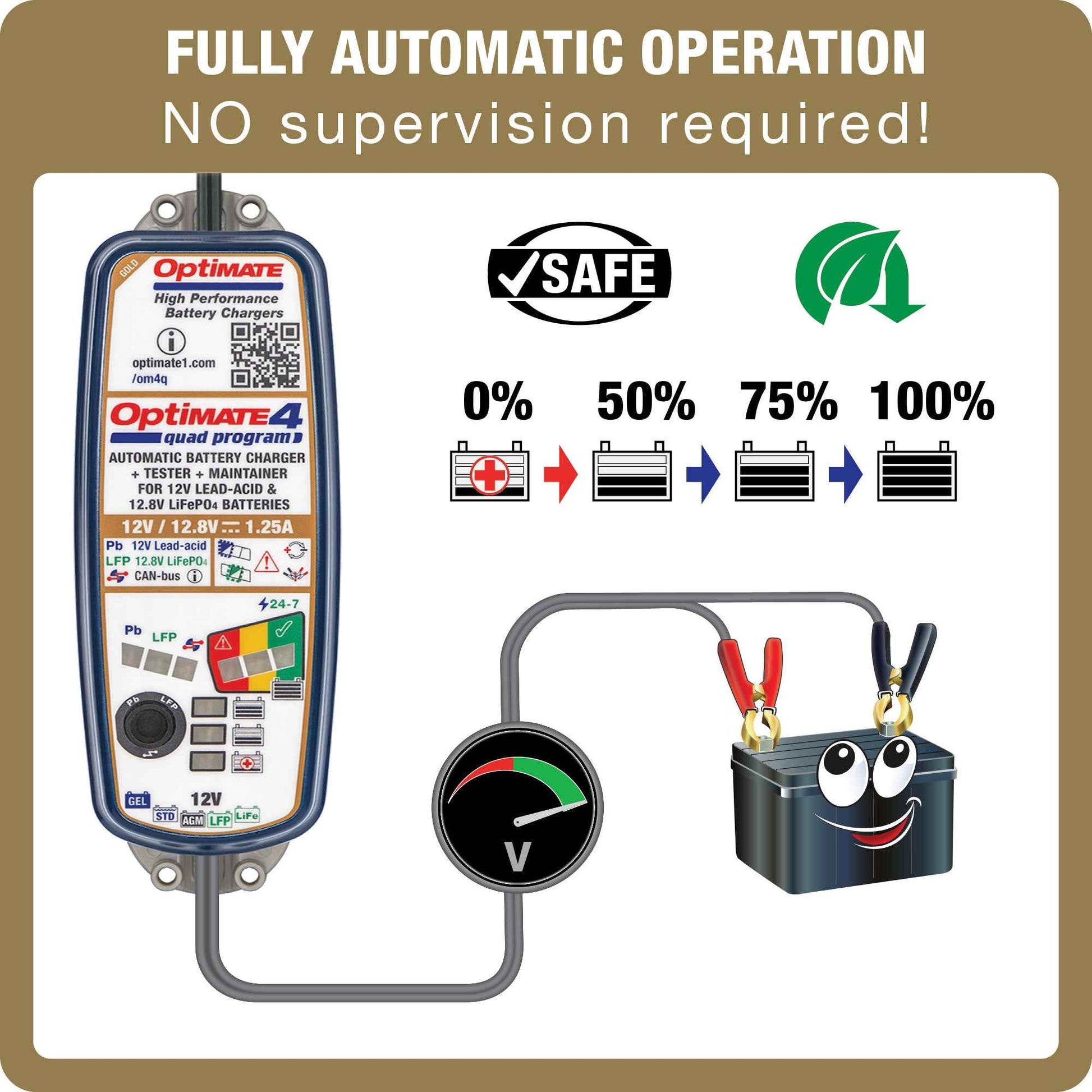

Once you have made your program selection, its fully automatic plug-and-play design and safe-for-vehicle-electronics technology means all you must do is connect it to the battery and the OptiMate4 Quad Program automatically saves, charges and tests the battery and then OptiMate’s proven 24-7 ‘connect & forget’ safe care makes sure your vehicle’s battery remains ready.

Best of all, it can save a dead-flat sulphated lead-acid battery, or a severely discharged lithium LFP battery from as low as 0.5 Volts, OR, reset the BMS (battery management system) of a lithium battery with built-in deep discharge protection.

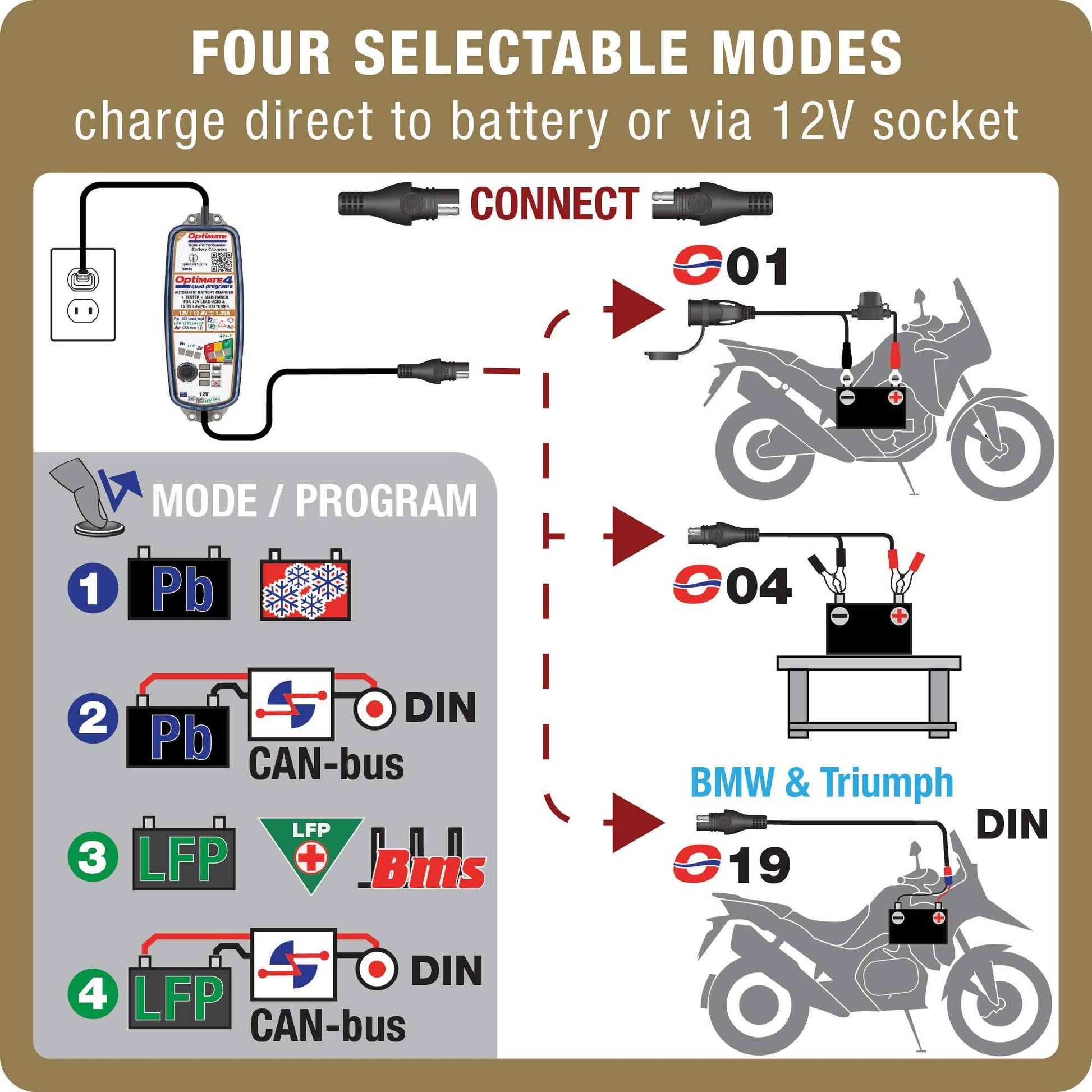

ADVANCED: Connect directly to the battery and program 1 (Pb) for all 12V lead-acid batteries, or program 3 (LFP) for all 12.8V Lithium LFP batteries, and the 9-step smart program does the rest automatically! Or, charge & maintain a BMW motorcycle's battery through its 12V port / socket with program 2 (Pb) for BMW Motorrad 12V lead-acid batteries, or program 4 (LFP) for BMW Motorrad 13.2V Lithium LFP batteries, and the 8-step smart program does the rest automatically!

SMART Selection: Selection remains in memory after you disconnect from the battery or if disconnected from AC power. Connect to the same battery or bike and it charges automatically, or if AC power goes out whilst it was charging or maintaining your battery and AC power returns, it automatically continues charging according to the memorized selection. No supervision required!

SAFE: Smart electronics protects against accidental reverse polarity connection. No sparks if clamps touch as the output remains off until it is connected to a battery with voltage.

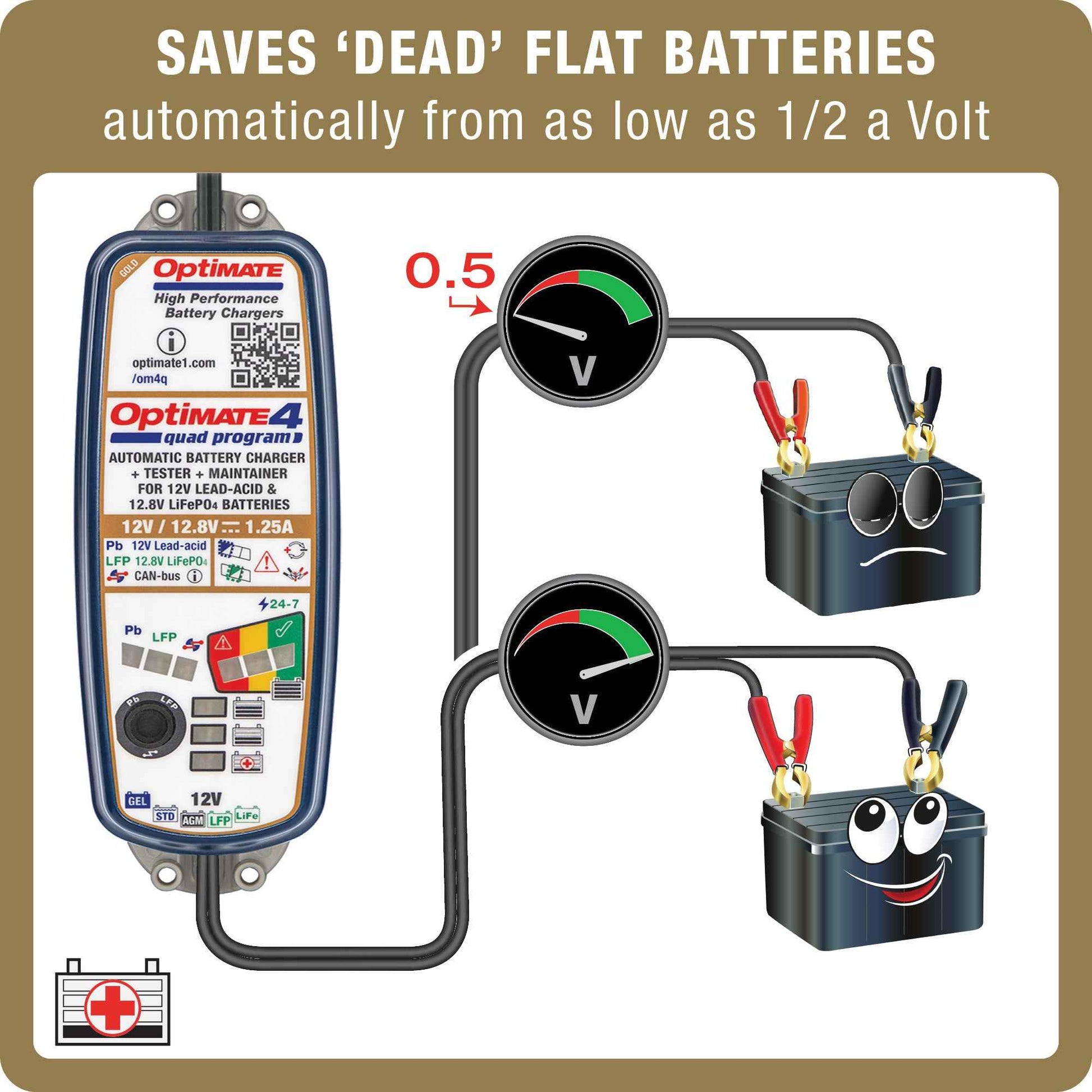

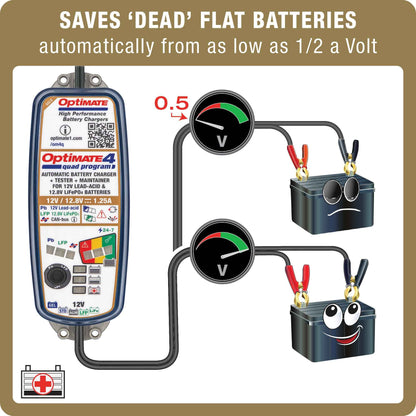

LOW VOLT START & 2-STEP SAVE: Program 1 for Pb saves a dead-flat battery from as low as 0.5V, with smart desulphation to get the battery to accept charge, followed by pulse recovery charge to bring it back to life. Program 3

LOW VOLT START & LITHIUM-SAFE RECOVERY: Saves a dead-flat lithium battery from as low as 0.5V with lithium specific recovery that reconditions the battery to once again accept normal charge. During reconditioning it tests cell health is good it continues reconditioning, but if permanent damage is found, it will stop charging to prevent overheating of damaged cells.

GREEN TECHNOLOGY: Hi-tech power conversion makes this 30W battery charging platform one of the most efficient motorcycle battery chargers in the industry. If left connected to AC power, standby power is less than 0.5W. OptiMate 4 is guaranteed to save you money in electricity cost!

More features:

• Charge current - 1.25 Amps at 12V / 12.8V.
• Universal 12V lead-acid motorcycle Battery Compatibility – Works with STD / flooded / wet-cell with removable filler caps (for adding distilled water) and sealed/maintenance free EFB (Enhanced Flooded Battery) & AGM (Absorbent Glass Mat).
• Lithium LFP/LiFePO4 12.8V/13.2V** motorcycle Battery Compatibility – including low voltage recovery and Lithium friendly 24-7 maintenance. Lithium batteries don't need continuous maintenance charging, OptiMate 4 monitors the battery hourly and if it needs charge (below 70%) it brings it back up to 90% for extended life. (Lithium battery capacity and life reduces if kept at 100% when not used). ** nominal voltage is 12.8V (4 x 3.2V), but some battery brands claim 13.2V (4 x 3.3V).
• Safe for Sensitive Electronics – No overcharging, spark-suppressed and short-circuit protected.
• Global input (100–240 V, 50 -60Hz) - connect with Type-C European 2-pin plug
• Eco-Friendly & Weatherproof – For indoor or outdoor use, even in extreme cold (–40°C) or heat (40°C).
• Plug & Play – Includes a handlebar hanging hook, a set of battery clamps for quick connect and a fused battery lead with M6 ringlets that can be permanently fitted to the battery.

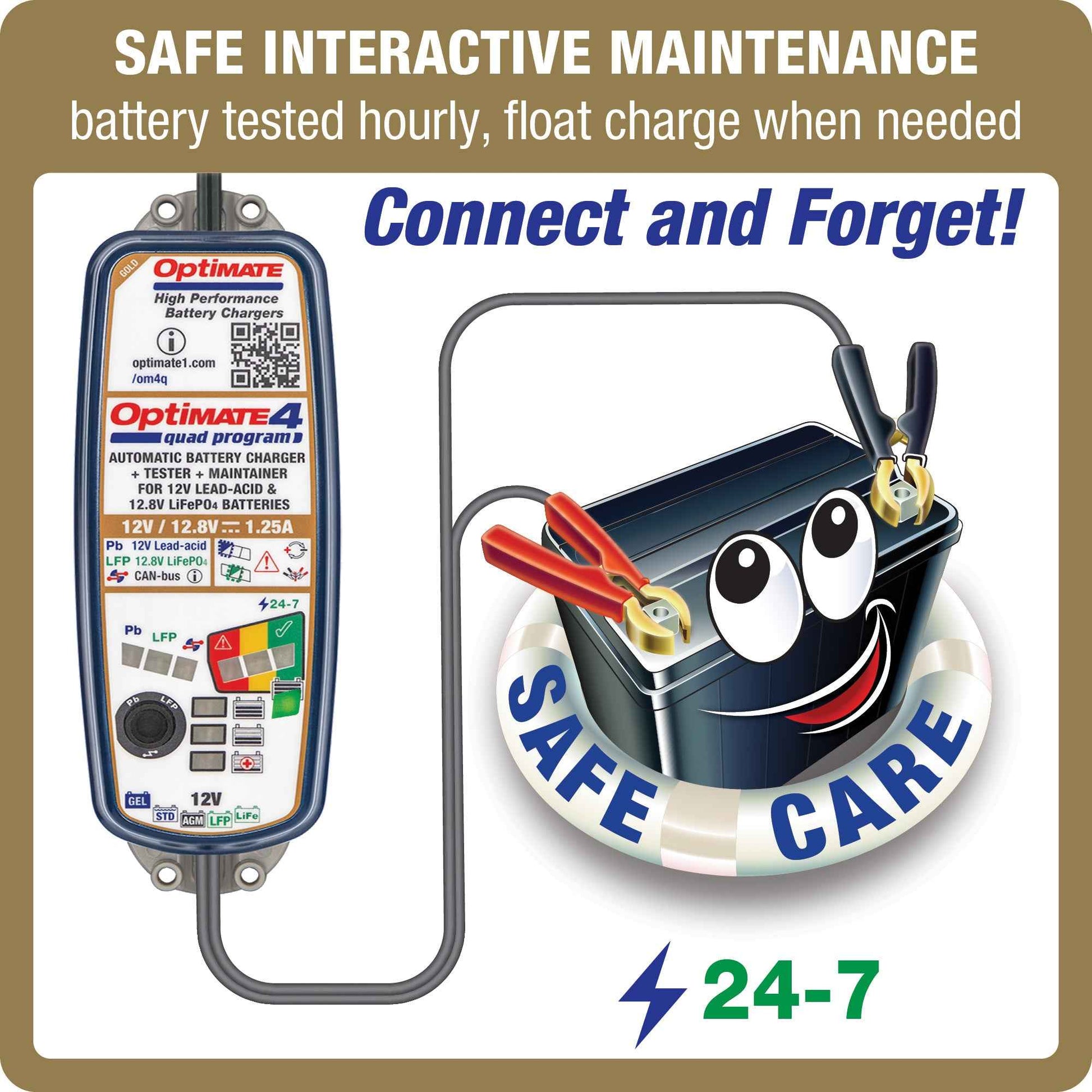

• Connect & Forget - Fully automatic time limited charging followed by 24-7 smart adaptable OptiMate (Pb / LFP) maintenance.

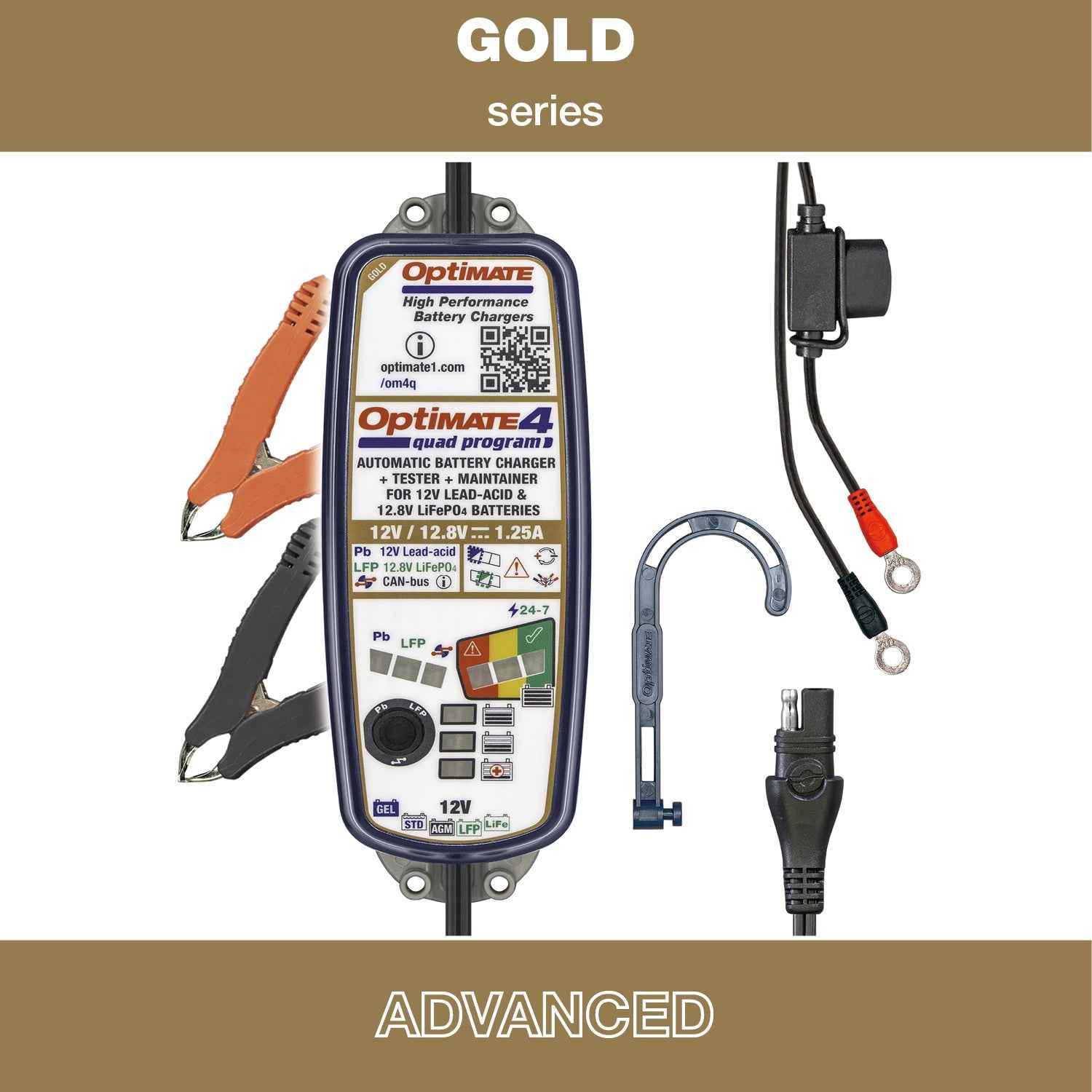

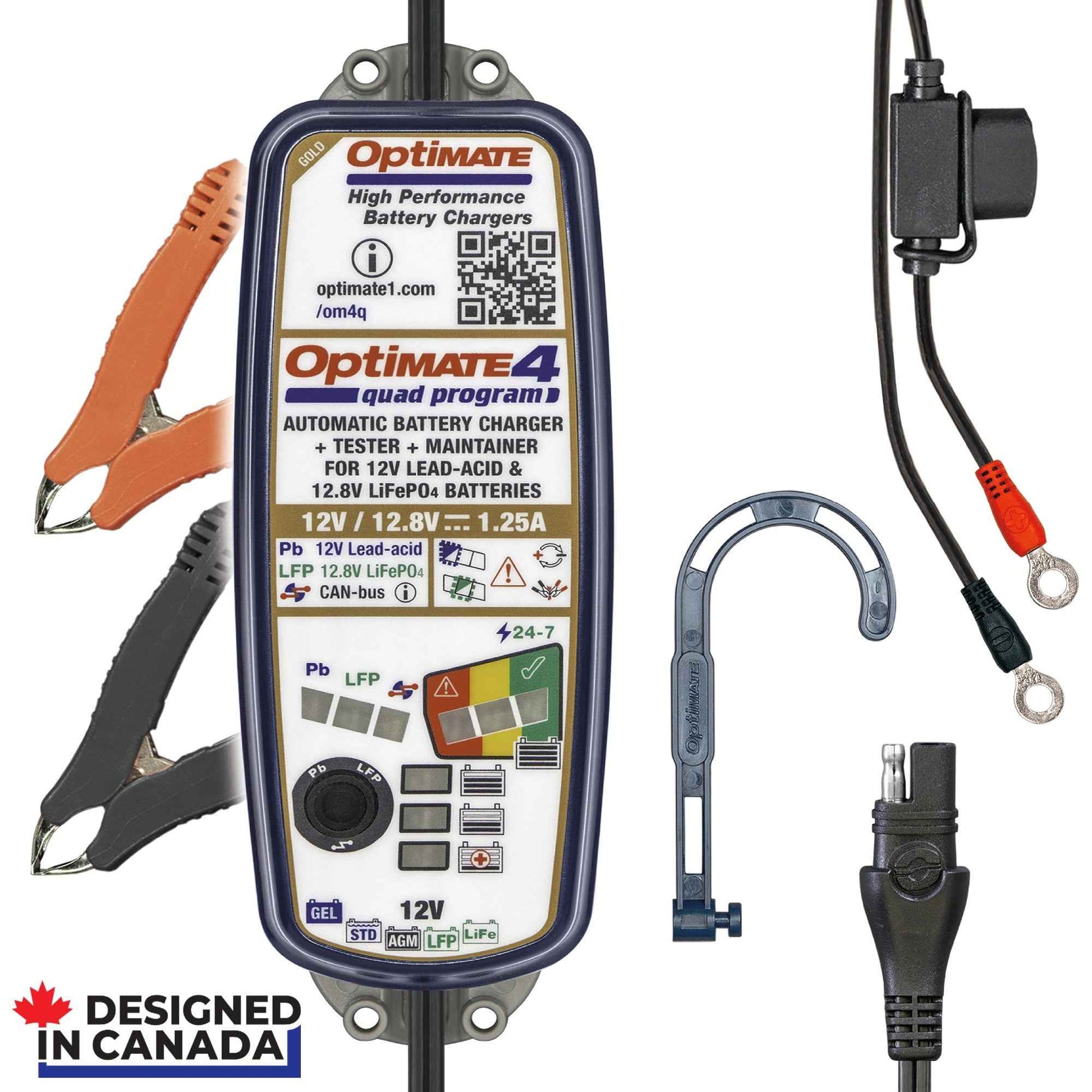

What’s in the Box

• OptiMate4 Quad Program (model TM630) 12V 1.25A fully sealed battery charger.
• O-04 Battery clamp set
• O-01 fused battery lead with M6 ringlets.
• Handlebar hanging hook
• Instruction manual
• 3-year replacement warranty
