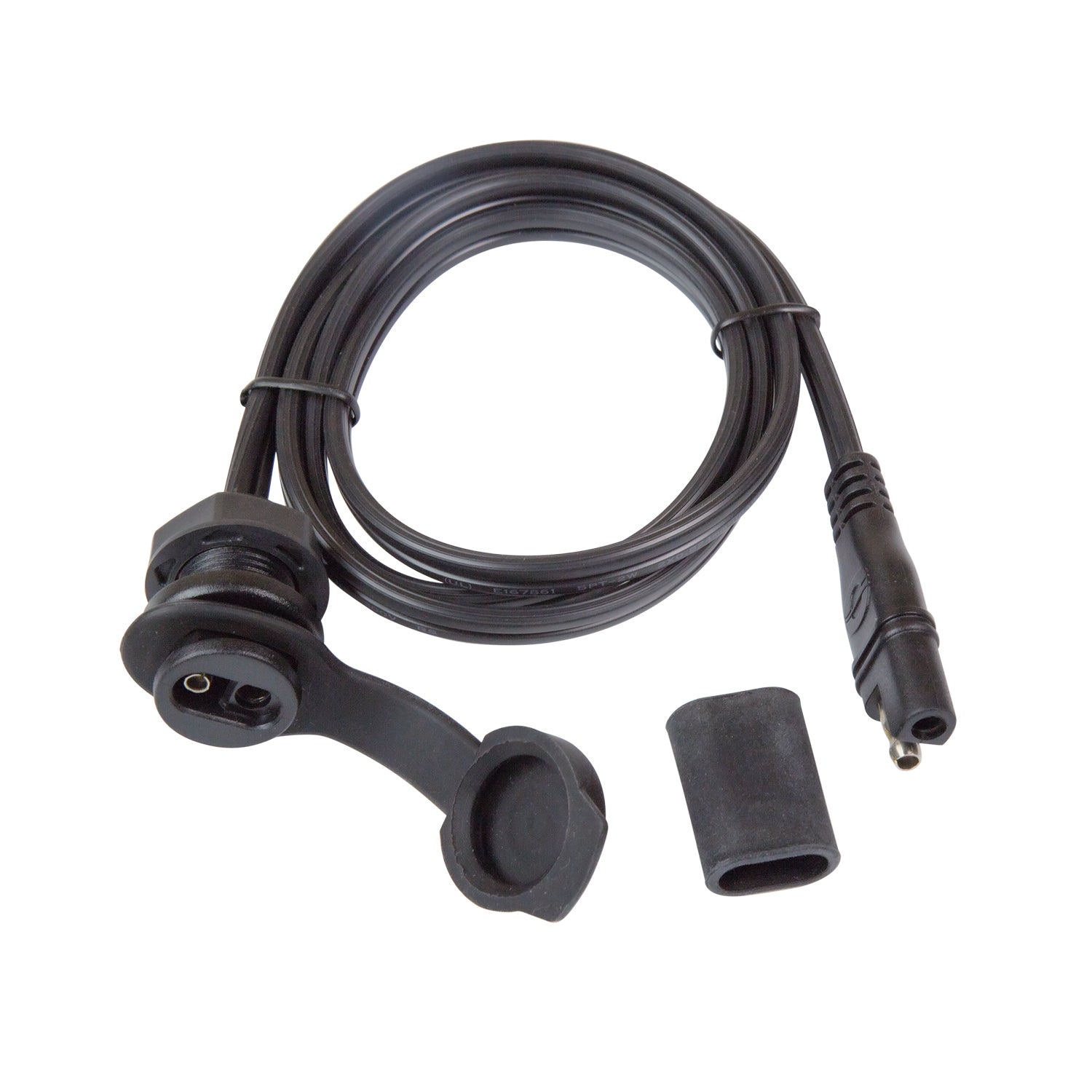

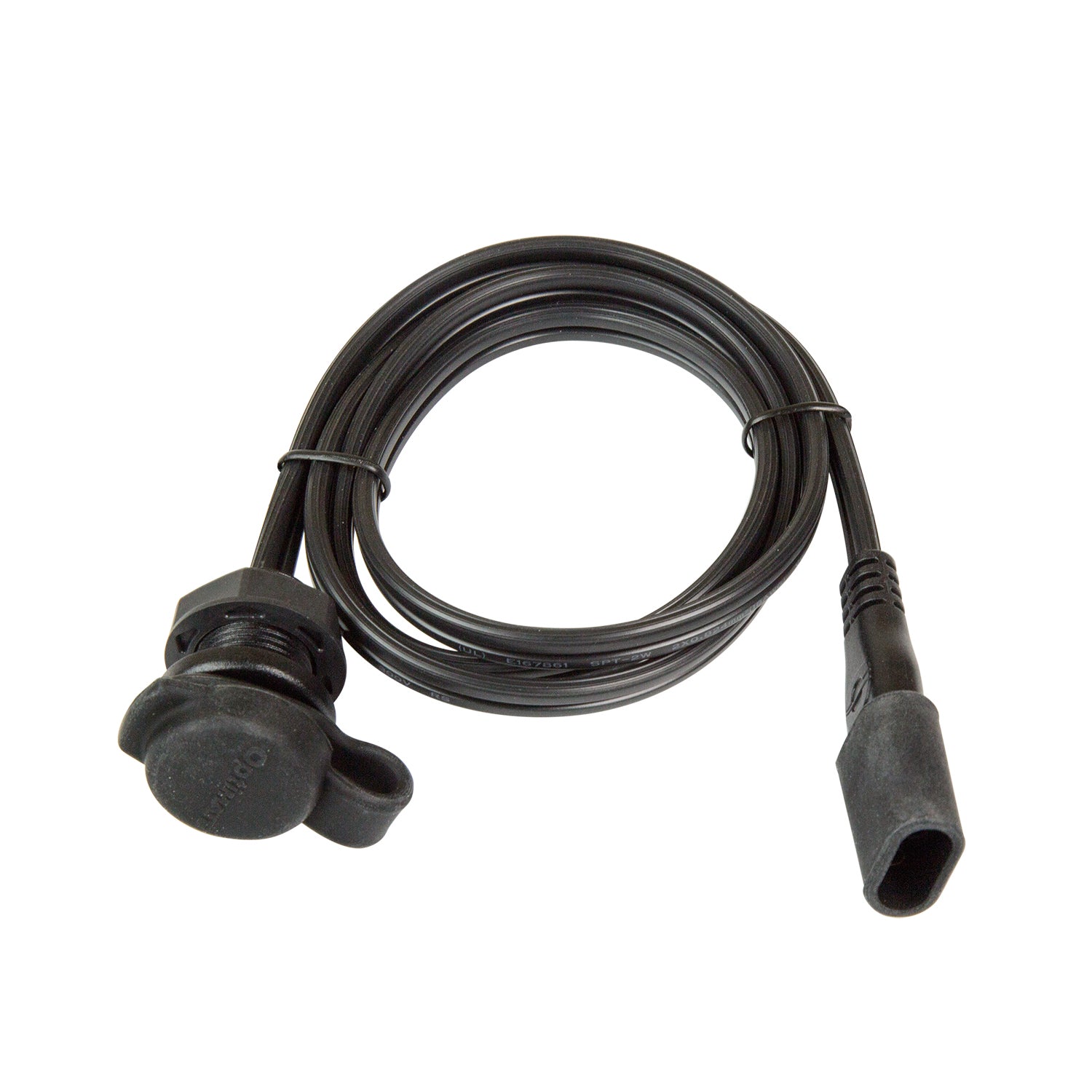

OptiMate Weatherproof SAE socket, panel mount - CABLE O-40

The OptiMate CABLE O-40 is a weatherproof bulkhead panelmount SAE power point. It is a drop in replacement for the BMW, Triumph & Ducati 12V DIN ‘Hella’ socket. The connector body fits a Ø18mm (23/32”) drilled hole. It provides a secure, rugged connection for battery chargers or SAE-equipped accessories, and can also serve as a drop-in replacement for OEM DIN/Hella sockets on many motorcycles.

Features and Benefits

• Front-mount panel design with rear fastener — secure and flush installation into panels from 1 mm thickness.
• 18 AWG / 0.82 mm² cable (cable diameter)
• Thicker insulation for better protection. SPT-2 (1.2 mm)
• Current rating: 5 A continuous / 7 A max — suitable for SAE-equipped chargers and low-amp 12 V accessories.
• Weather- and dirt-protected SAE connection system, including an in-line rubber seal — helps safeguard the connection from water, dust and corrosion, making it reliable in harsh or outdoor environments.
• Rated for low-temperature use: cable remains flexible even in freezing conditions down to –40 °C ensuring dependable use in cold weather.

What’s in the box

• 1 × OptiMate weatherproof weatherproof bulkhead/panel mount SAE power point (100 cm)
• 1 x In-line rubber seal for SAE connection

Warranty

• 3-year limited replacement warranty
