OptiMate Solar DUO TM523-8TK: OFF-GRID series 80W 12V lead-acid battery charger Travel / Camping Kit

OptiMate Solar DUO TM523-8TK: OFF-GRID series 80W 12V lead-acid battery charger Travel / Camping Kit

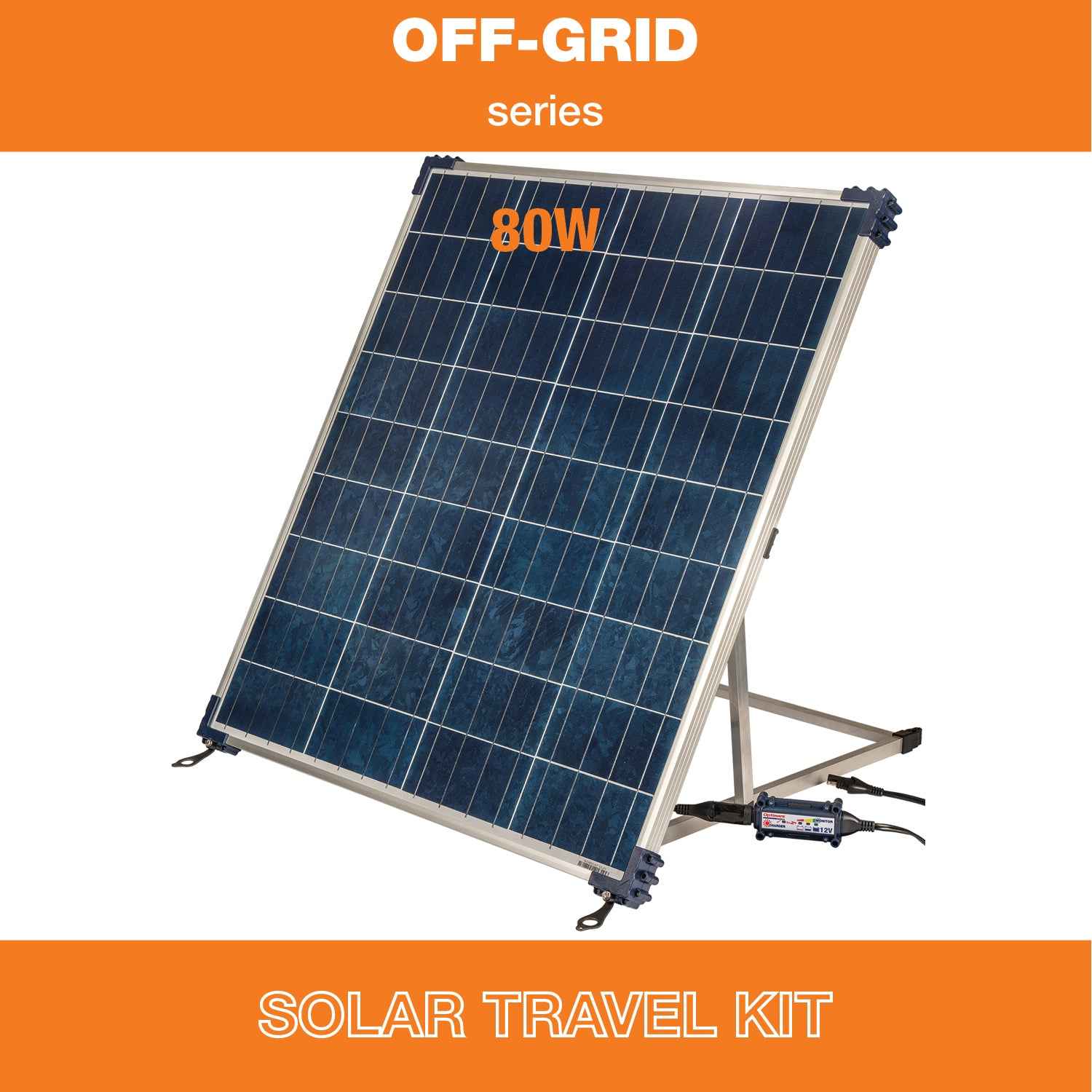

The OptiMate Solar 80W Travel Kit (model: TM523-8TK) combines a weatherproof poly-crystalline 80W solar panel equipped with an adjustable rear stand, with the TM523 charge controller to create a hi-efficiency smart pulse charger & maintainer for more effective care of your 12V lead-acid starter or deep cycle batteries, perfect for campers, overlanders, boaters, and mobile professionals.

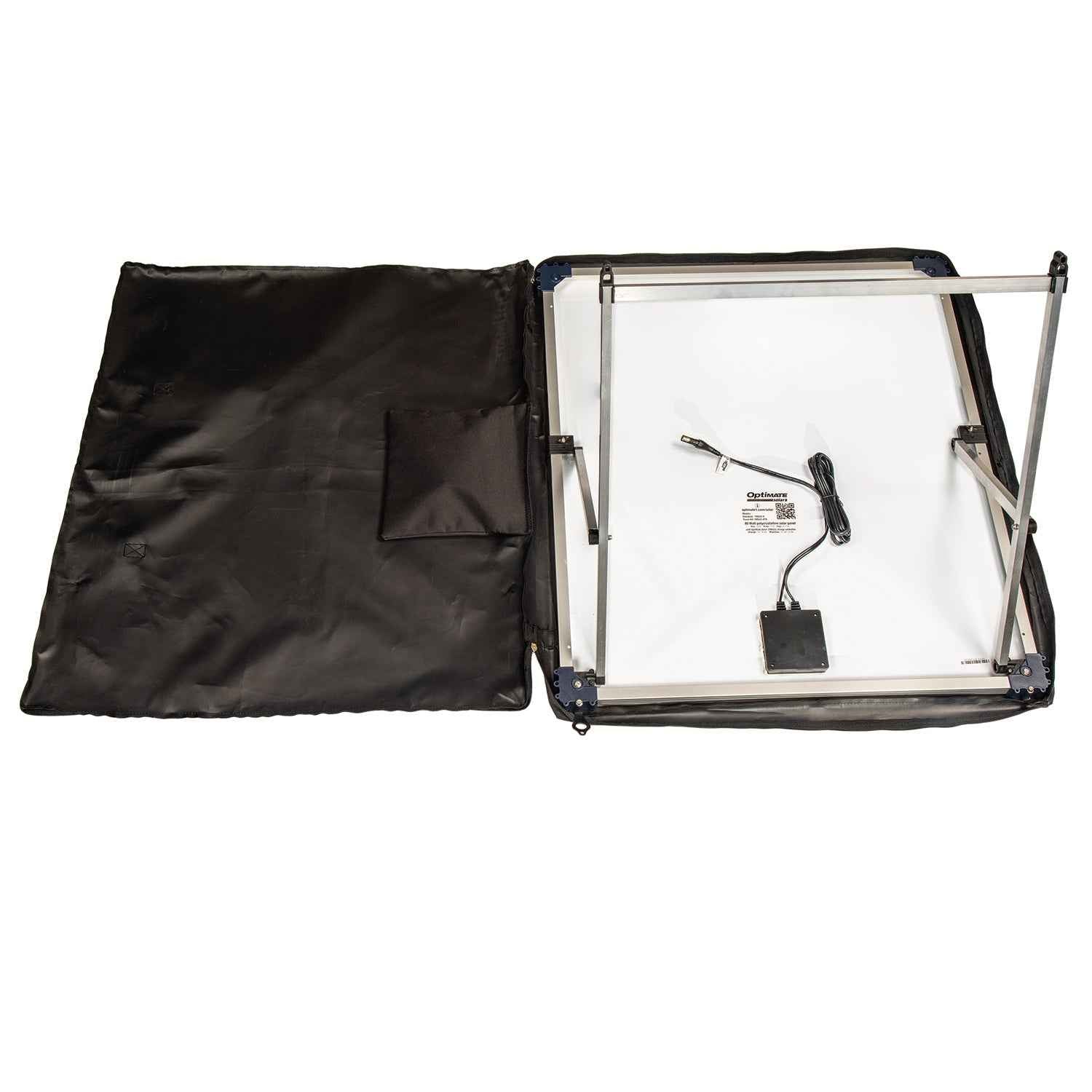

How it works : Unpack the panel from the nylon storage case, adjust the rear legs so that the panel is correctly angled towards the sun, connect the TM523 charge controller to your battery and that's it! Your 12V battery is receiving effective charge whilst you are using it. The panel has anchor points to secure it in position.

The poly-crystalline solar cells work effectively with direct and angled sun, or with sunlight filtering through cloud, allowing charging in any weather. The OptiMate Solar charge controller converts low current from the panel into effective charge pulses that work better at charging any type of battery.

With the OptiMate Solar smart controller between the 80W panel and battery, the panel's output efficiency is raised to 50-100% (depending on strength of sun) generating a faster charge, with the controller regulating battery charge voltage to exactly what a 12V battery needs.

With OptiMate Solar charge controller you can now leave your solar charge panel permanently connected to your battery even whilst you are using it - not only does it charges the battery better and faster, there is no possibility of overcharging!

And that's not all, at night the controller turns into a battery monitor, indicating the status of your battery. Come morning, even in cloudy weather, it turns back into a charger and continues caring for your battery.

80 WATT CHARGING POWER - Ideal for 12V batteries capable of accepting up to 5A (average) charge current.

PANEL WORKS IN ANY WEATHER - poly-crystalline technology designed to work effectively with variable sun power.

PULSE CONVERSION TECHNOLOGY - Accumulates low current from the panel and converts it into efficient charging pulses ranging from 5A to 7A, never-mind the weather. High sun - more frequent pulses; cloudy skies - less frequent pulses.

CHARGER BY DAY, MONITOR BY NIGHT - Charge controller switches between charge and monitor mode depending on incoming power. You always know the condition of your battery.

Specifications:

• SOLAR PANEL RATING : 80 Watt poly-crystalline, with Vmp = 17V (Voltage at maximum power) and Voc ≤ 22V (Voltage open circuit - nothing connected to panel).

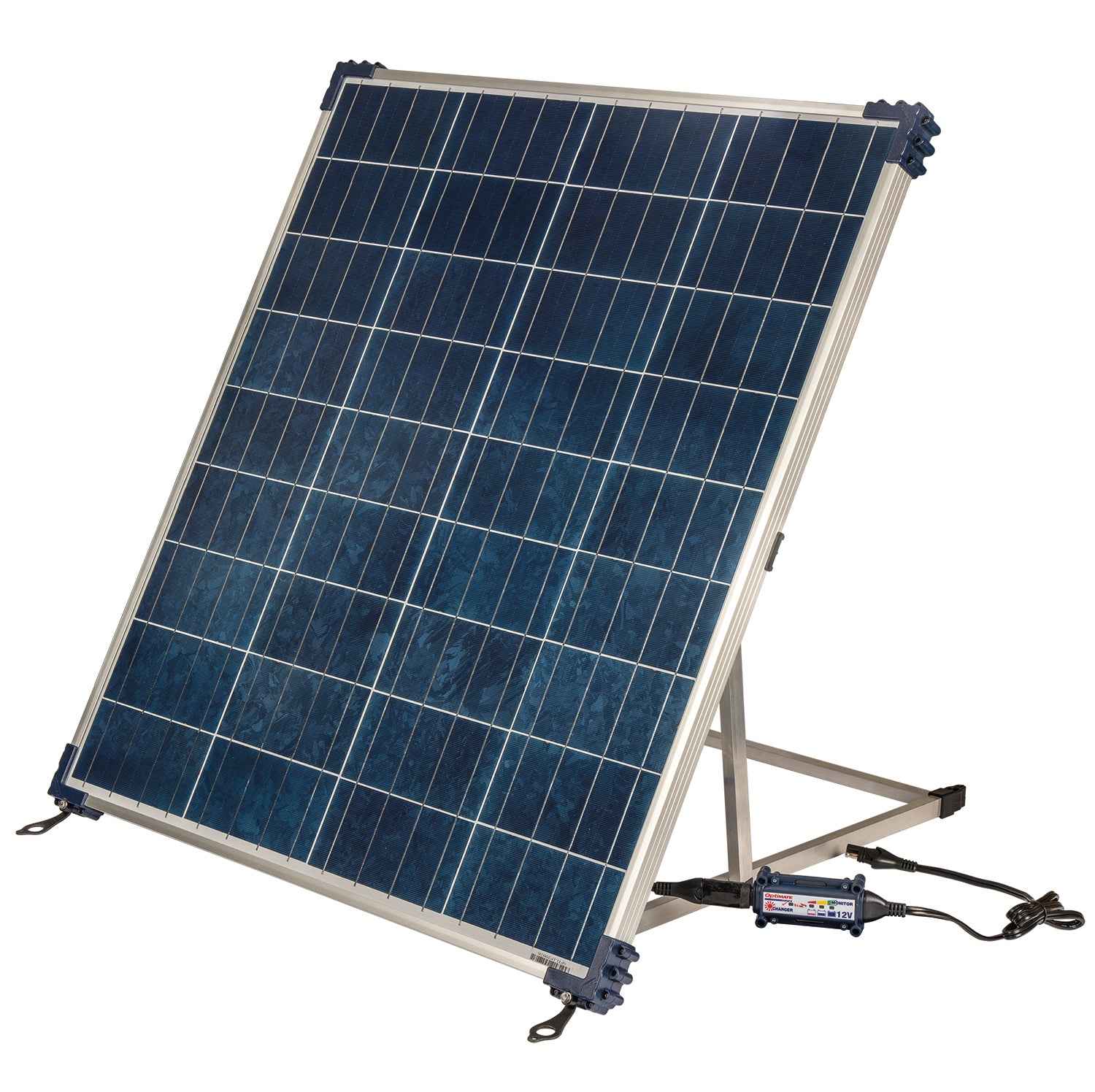

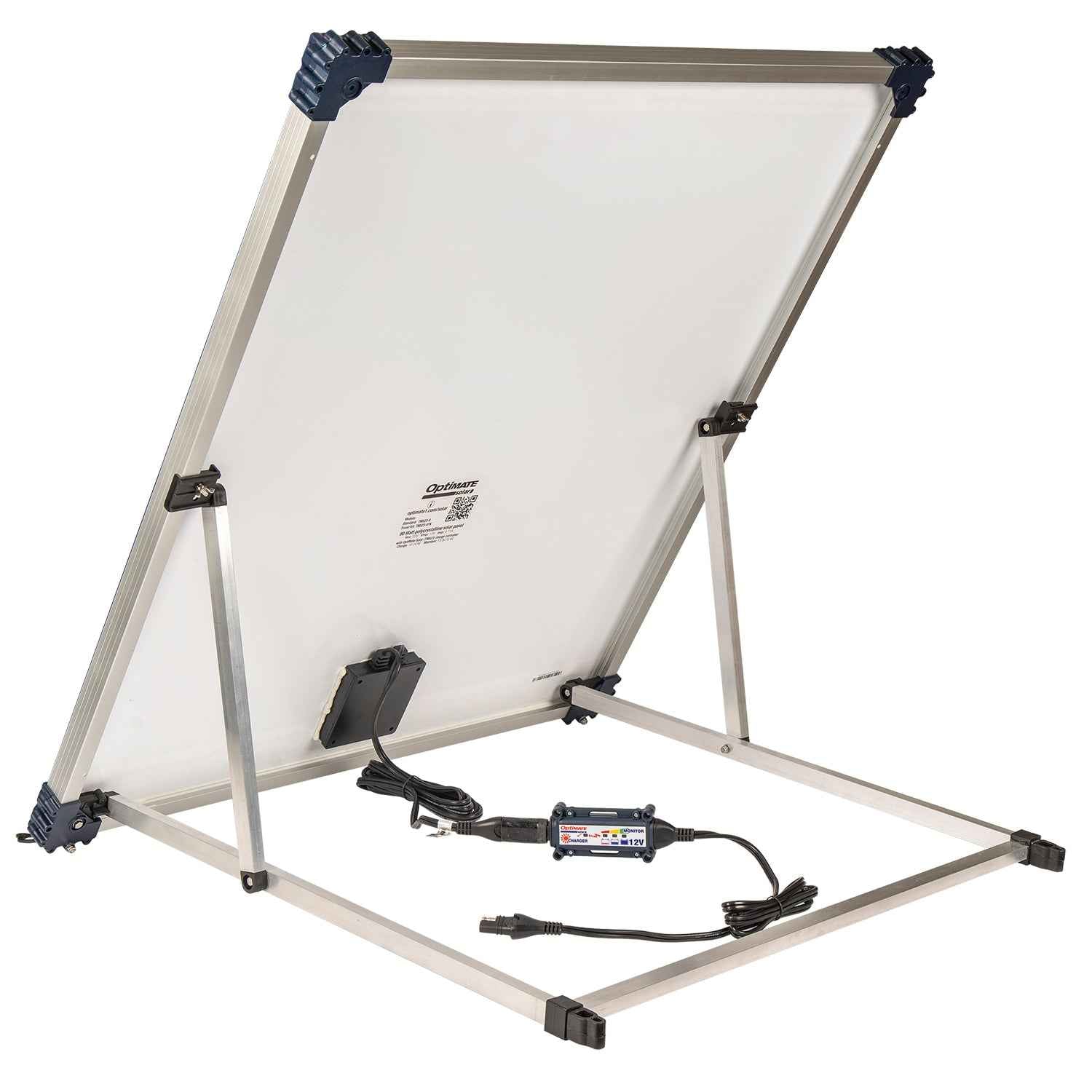

• ADJUSTABLE : REAR BRACKET adustable between 0 and 90 degrees.
• CHARGE CONTROLLER OUTPUT VOLTAGE RANGE : 4V to 14.4V.
• PROGRAM STEPS : SAVE from 4V to 12V, CHARGE up to 14.4V, MAINTAIN between 13V and 13.6V, MONITOR (when there is no incoming power).
• MONITOR : 3 LEDs indicate battery state of charge.
• Universal 12V lead-acid battery Compatibility – Works with STD / flooded / wet-cell with removable filler caps (for adding distilled water) and sealed/maintenance AGM (Absorbent Glass Mat) or GEL.
• Safe for Sensitive Electronics – No overcharging, spark-suppressed and short-circuit protected.
• Plug & Play – Includes a set of battery clamps for quick connect and a fused battery lead with M8-10 ringlets that can be permanently fitted to the battery.
• Connect & Forget - Fully automatic charging and maintenance.
• (Instruction manual pdf)

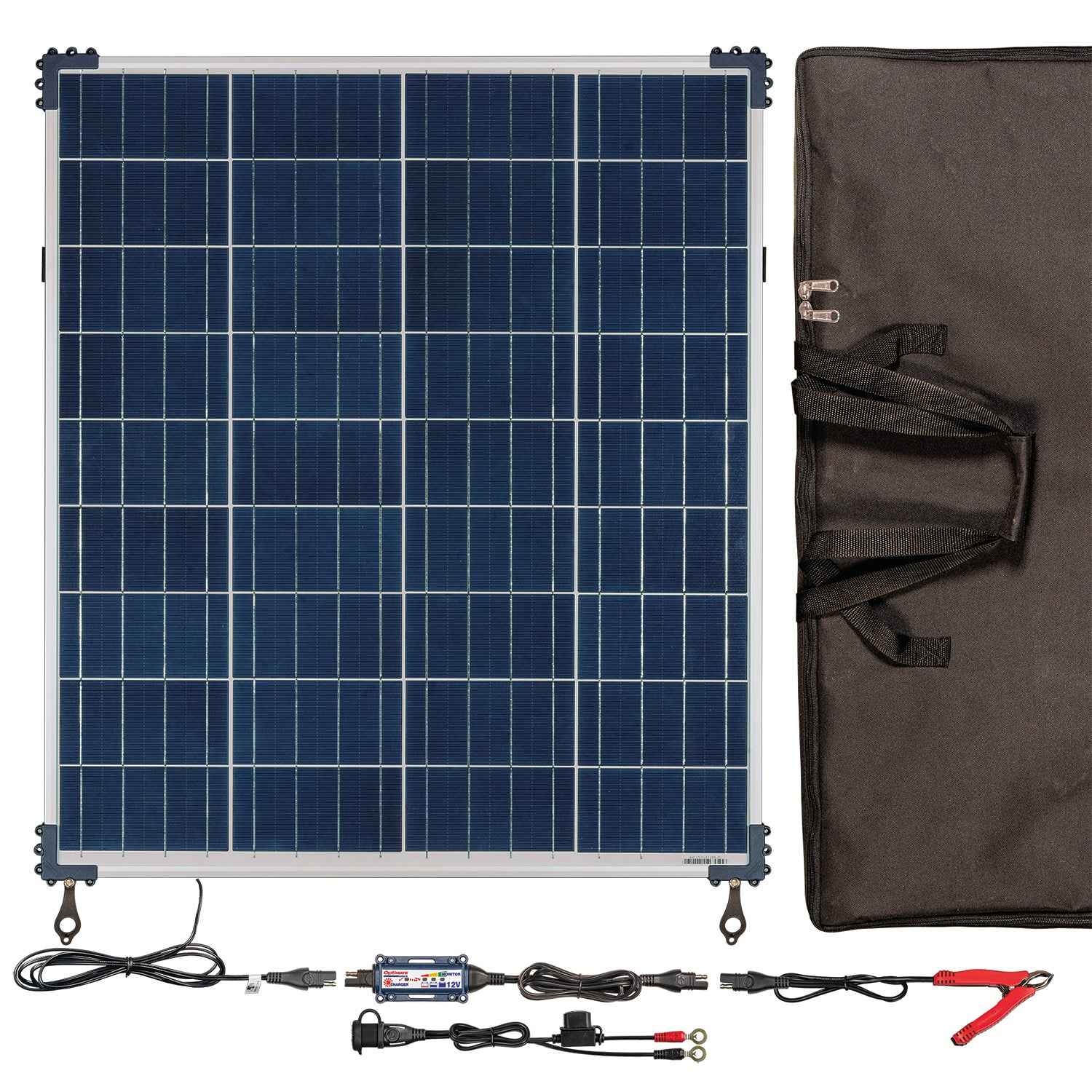

What’s in the Box

• OptiMate 80W Solar panel with adjustable rear stand and charge cable.

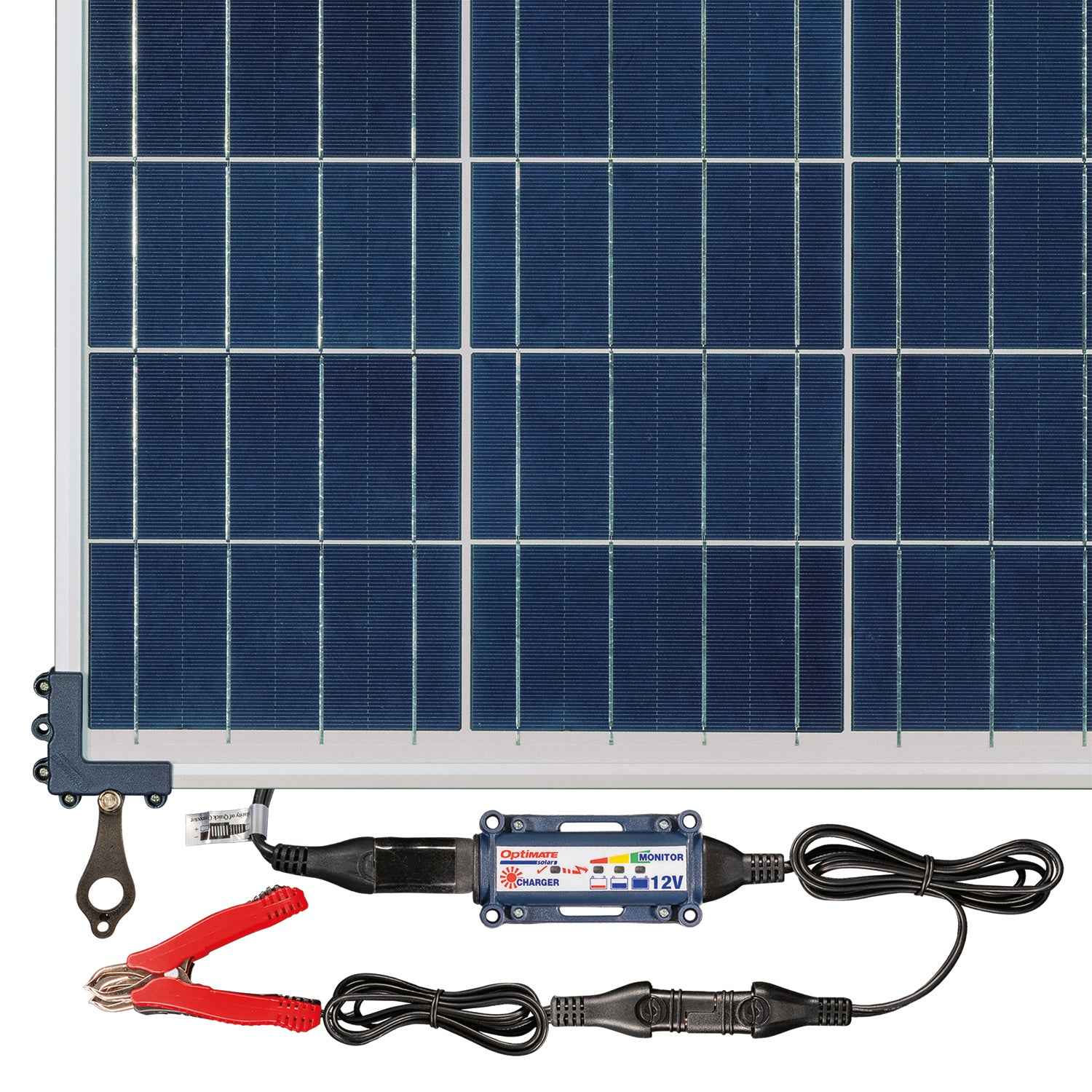

• OptiMate Solar TM523 Smart charge Controller, SAE input and 180cm output cable with SAE connector.
• O-04 crocodile clips
• O-11 fused battery lead
• Instruction manual

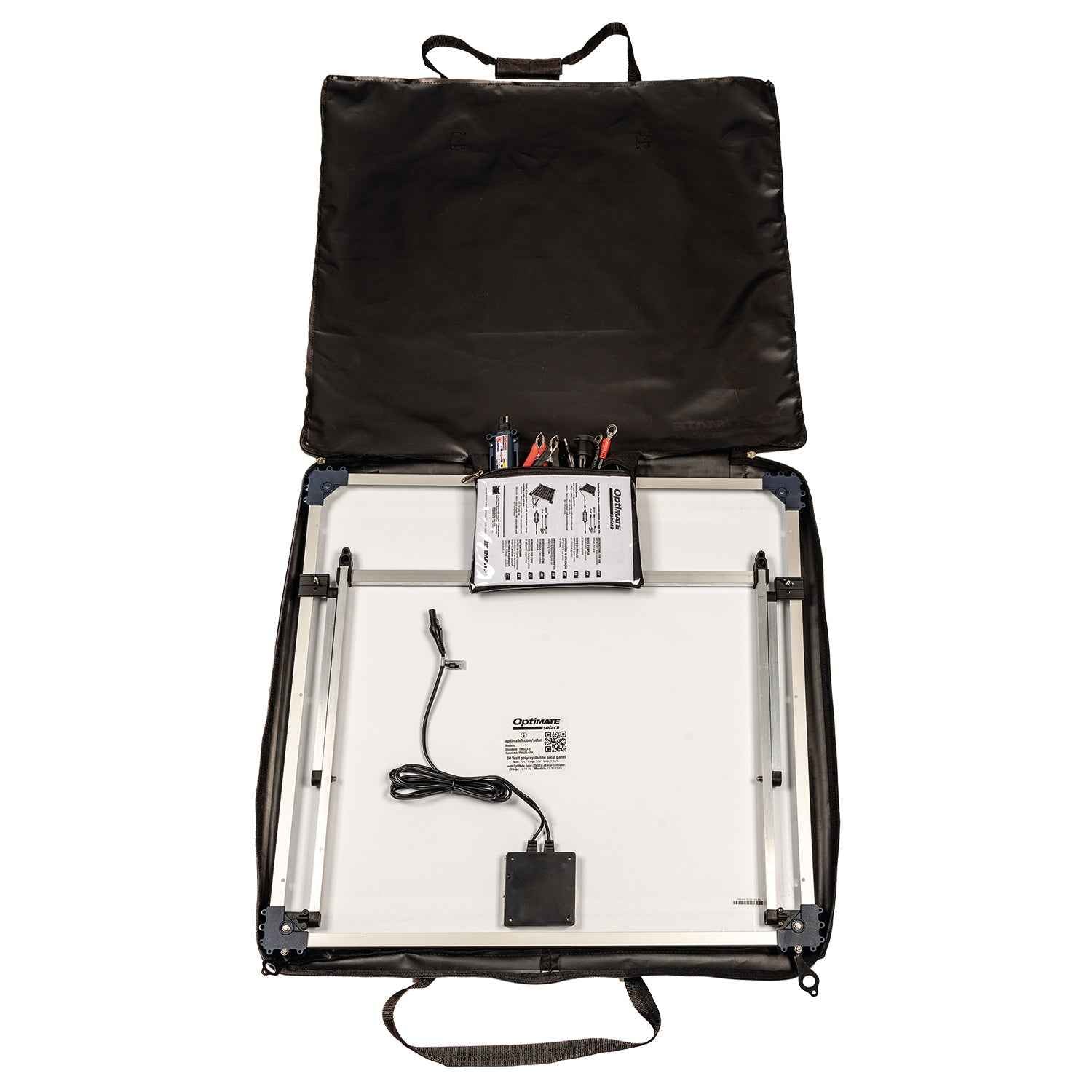

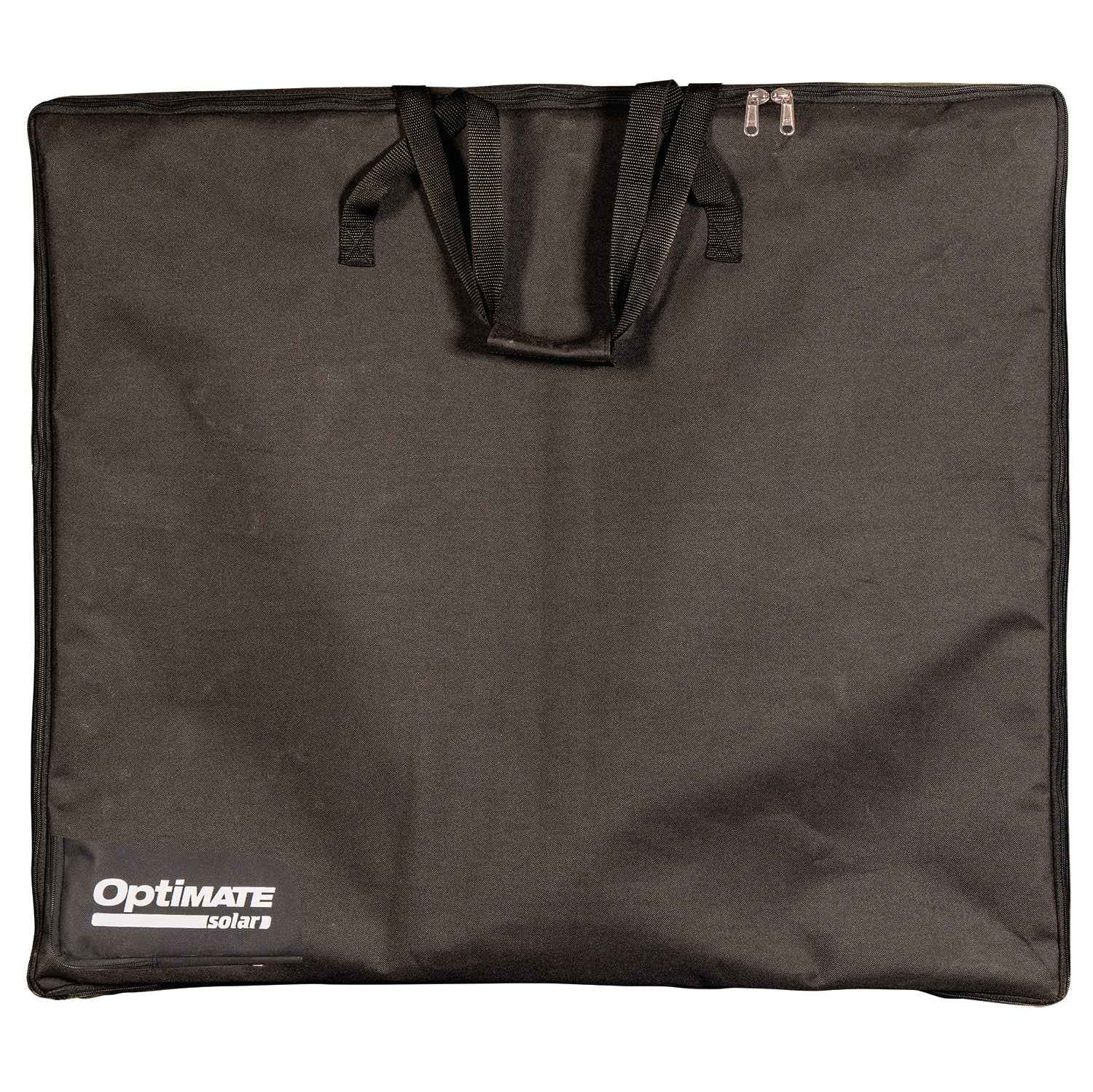

• Nylon storage case with zipper opener and carry handle.
• 3-year limited replacement warranty
