OptiMate Solar DUO TM522-D2CK: OFF-GRID series 20W car / bakkie 12V Battery Maintenance Kit

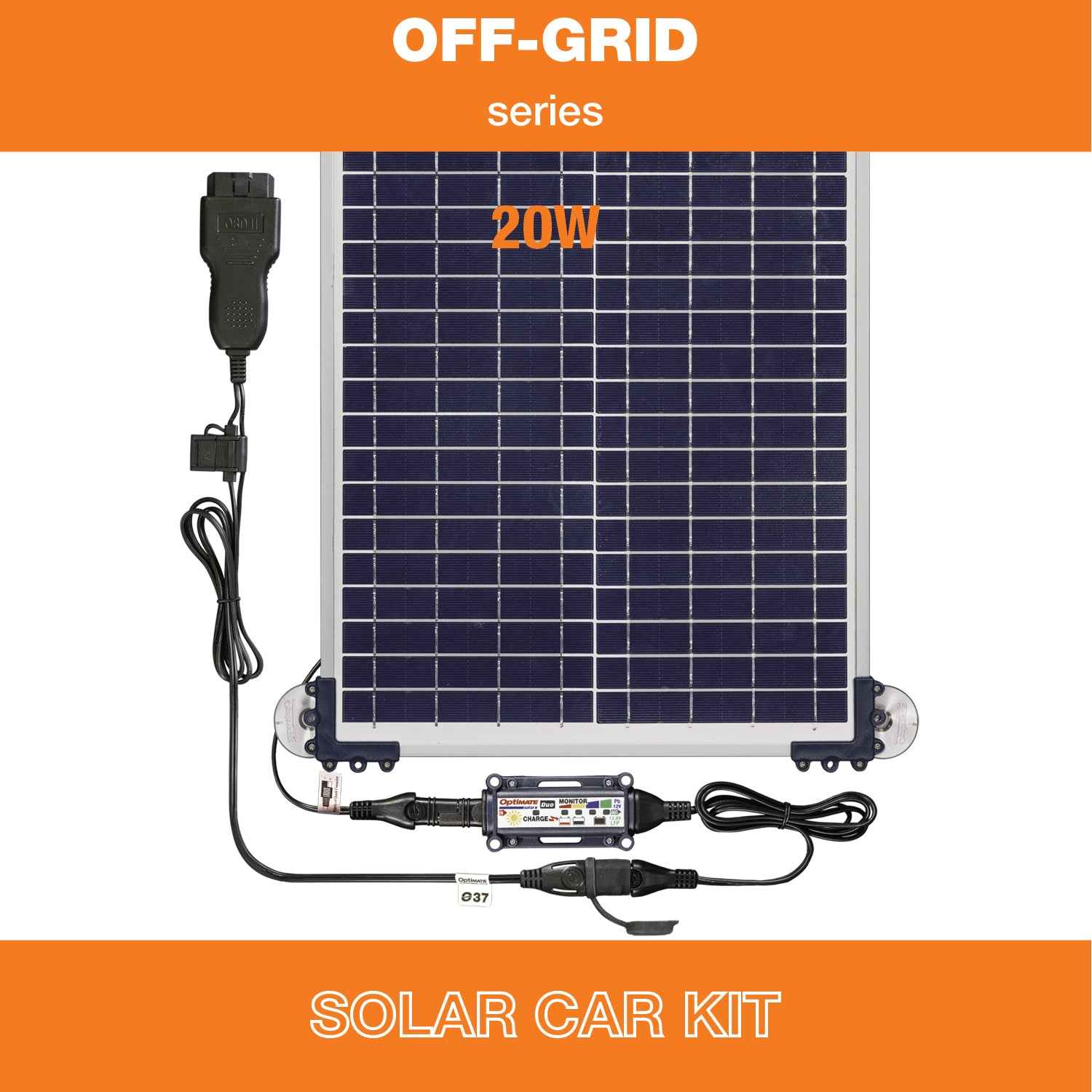

The OptiMate Solar DUO 20W Car Kit (model no: TM522-D2CK) combines a weatherproof poly-crystalline 20W solar panel with 4x silicon rubber suction cups, connected to the TM522-D charge controller with an OBDII charge adapter, to create a hi-efficiency smart pulse charger & maintainer for easy in-cabin care of your 12V lead-acid car/bakkie battery. The kit is delivered with a nylon carry case to store the solar charger away when you are using your vehicle.

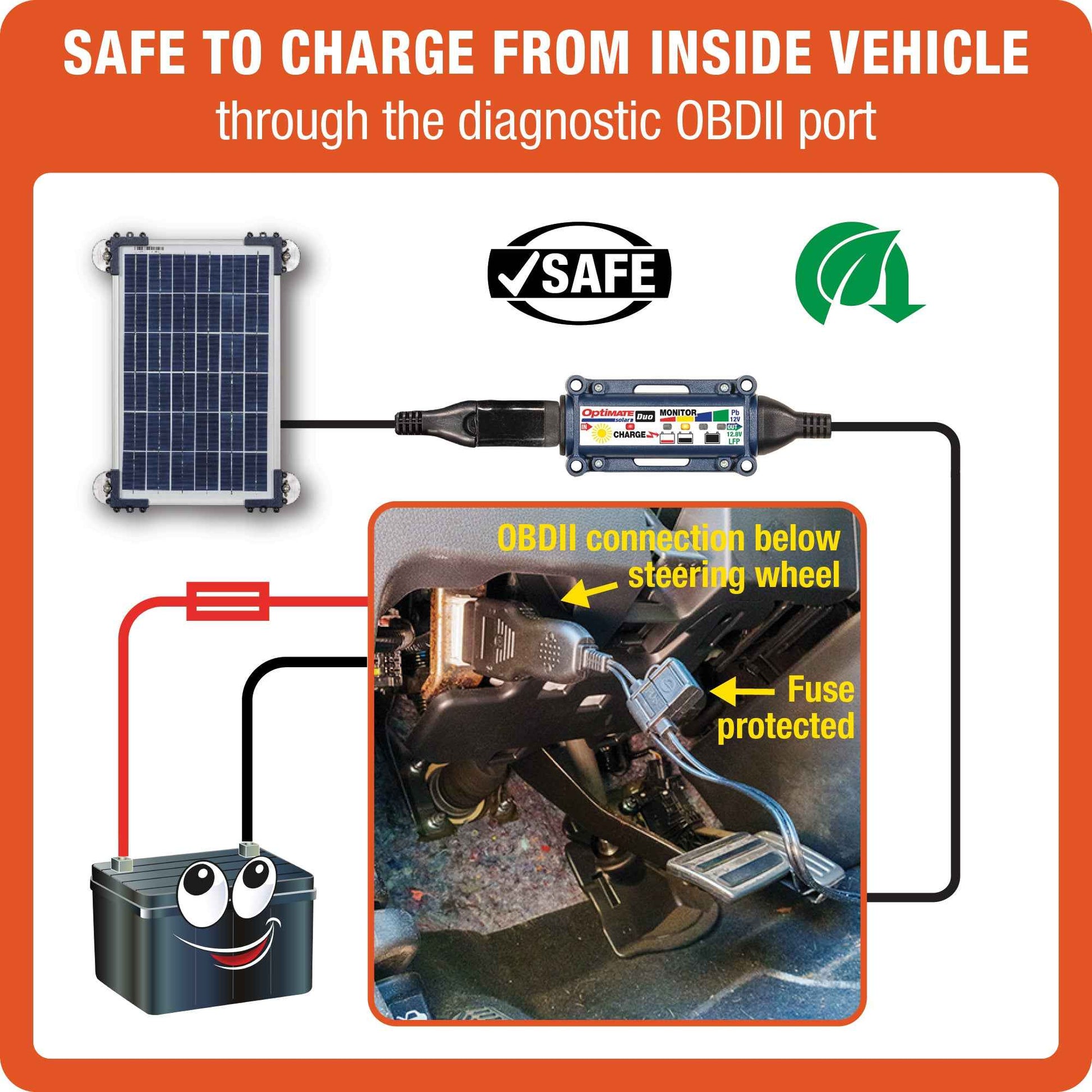

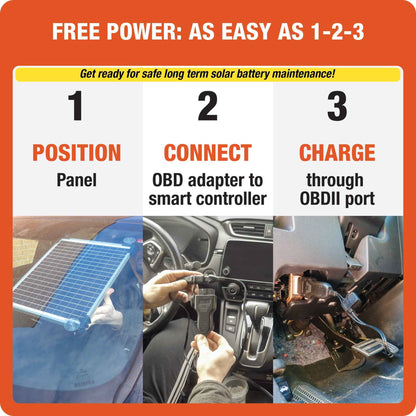

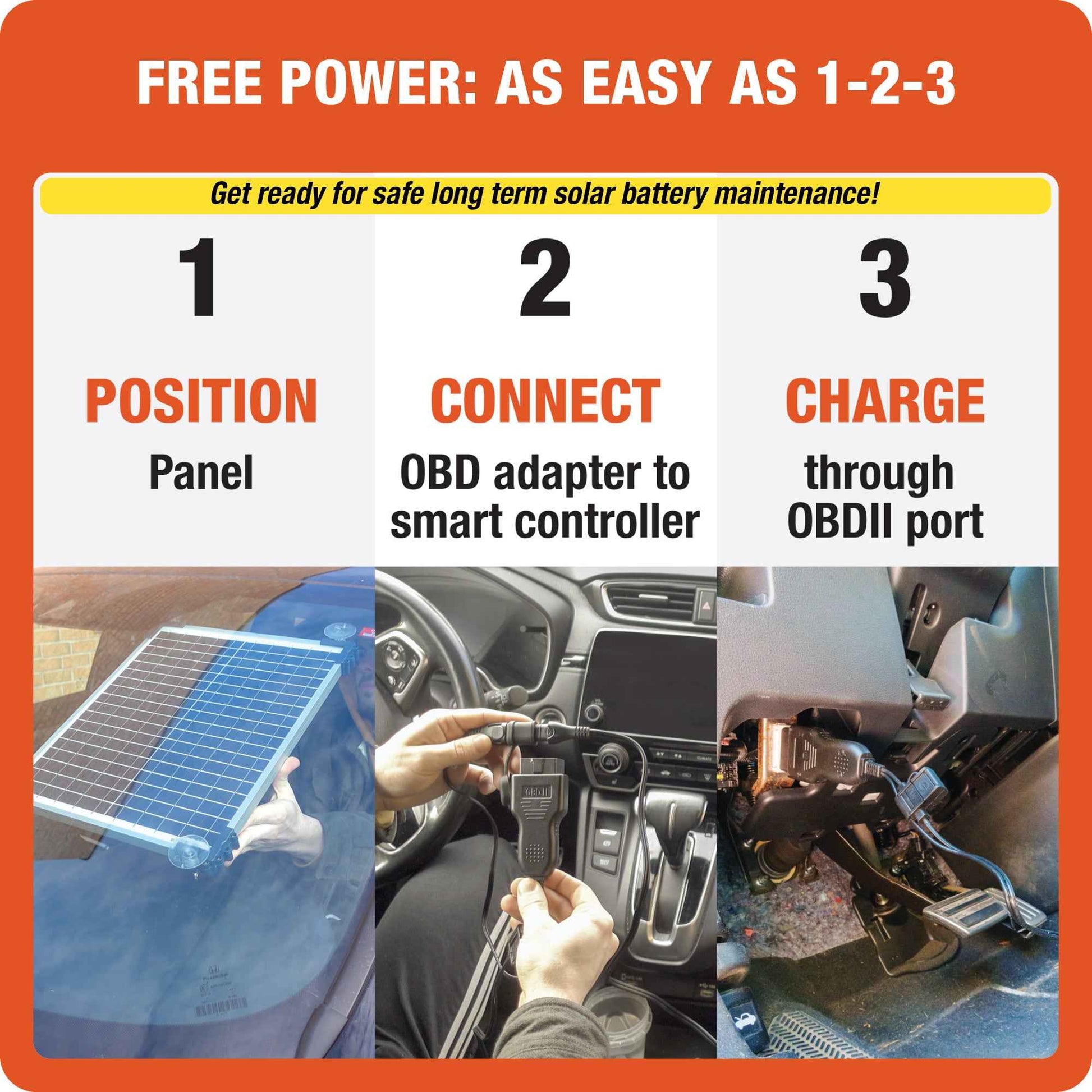

How it works inside your vehicle : Attach the panel to your windshield with the suction cups, or flip the suction cups around to use as soft feet and place the panel on your dashboard. Connect the solar charge controller to the OBDII diagnostic port located below your steering wheel and that's it. Two pins of the vehicle's OBDII is connected directly to the battery and the OptiMate OBDII charge adapter connects only to those two pins. Your vehicle's battery will receive safe daily battery maintenance through the OBDII port. Store the vehicle for a week or month or longer, your battery is guaranteed to be ready when you need use the vehicle!

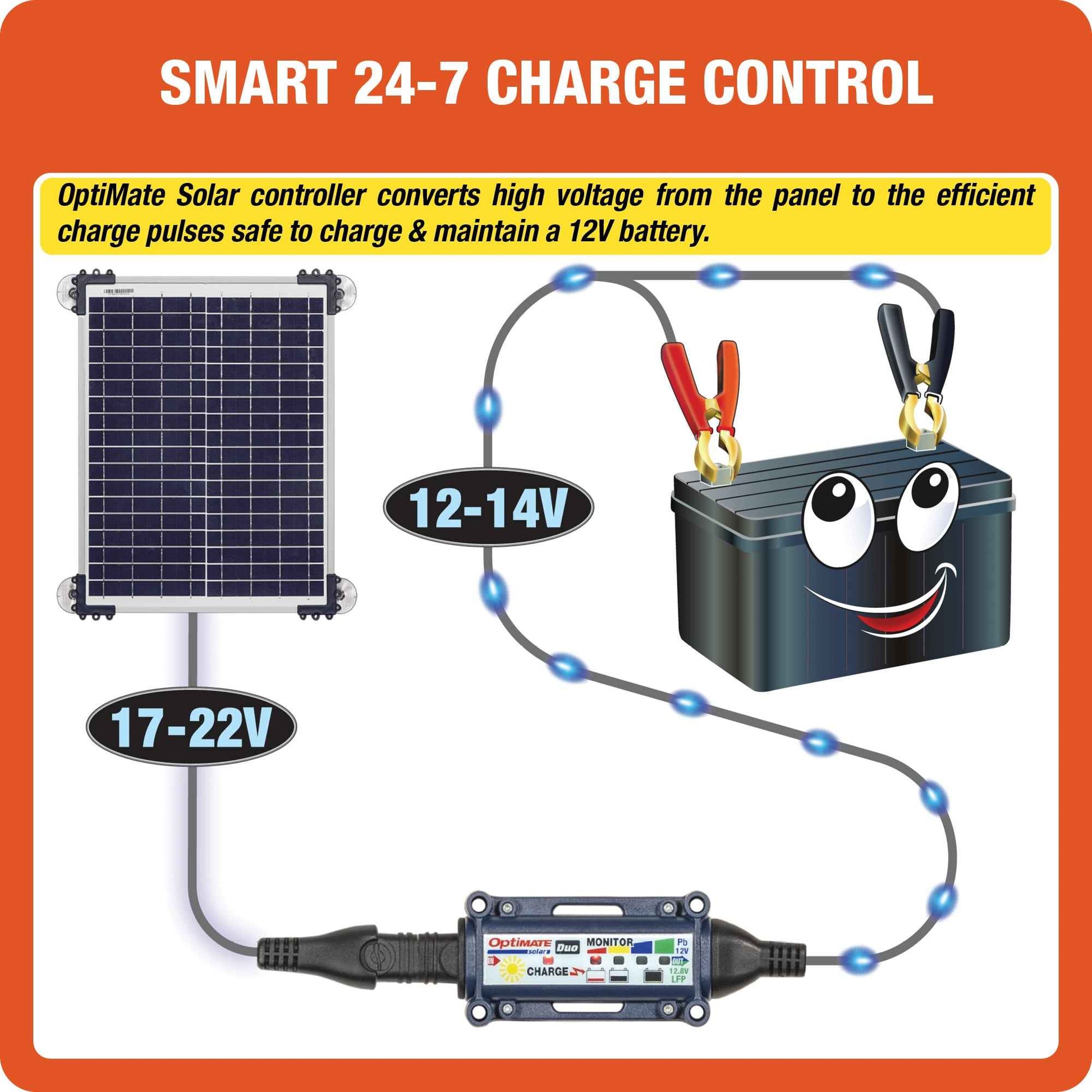

The poly-crystalline solar cells work effectively with direct and angled sun, or even with sunlight filtering through cloud, allowing charging in any weather. The OptiMate Solar DUO charge controller converts low current from the panel into effective charge pulses that work better at charging any type of battery.

With the OptiMate Solar DUO smart controller between the 10W panel and battery, the panel's output efficiency is raised to 50-100% (depending on strength of sun) generating a faster charge, with the controller regulating battery charge voltage to exactly what a 12V battery needs.

With OptiMate Solar Duo charge controller you can now leave your solar charge panel permanently connected to your battery - not only does it charges the battery better and faster, there is no possibility of overcharging!

And that's not all, at night the controller turns into a battery monitor, indicating the status of your battery. Come morning, even in cloudy weather, it turns back into a charger and continues caring for your battery.

20 WATT CHARGING POWER - Ideal for smaller car 12V batteries capable of receiving 1.67A (average) charge current.

PANEL WORKS IN ANY WEATHER - poly-crystalline technology designed to work effectively with variable sun power.

PULSE CONVERSION TECHNOLOGY - Accumulates low current from the panel and converts it into efficient charging pulses ranging up to 4-5A, never-mind the weather. High sun - more frequent pulses; cloudy skies - less frequent pulses.

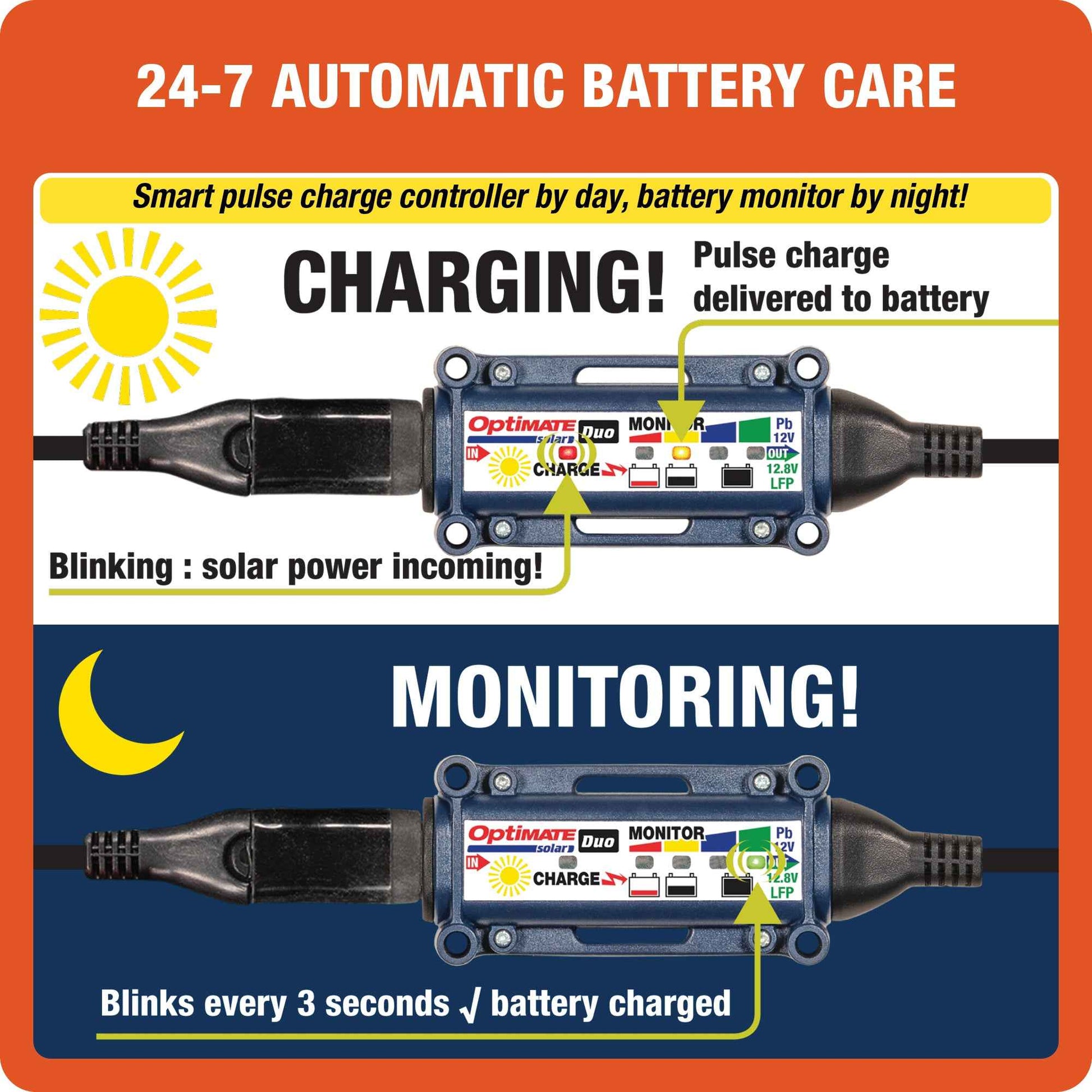

CHARGER BY DAY, MONITOR BY NIGHT - Charge controller witches between charge and monitor mode depending on incoming power. You always know the condition of your battery and the blinking LED corresponding to the battery charge level, can be seen from afar.

Specifications:

• SOLAR PANEL RATING : 20 Watt poly-crystalline, with Vmp = 17V (Voltage at maximum power) and Voc ≤ 22V (Voltage open circuit - nothing connected to panel).
• CHARGE CONTROLLER OUTPUT VOLTAGE RANGE : 4V to 14.4V.
• PROGRAM STEPS : SAVE from 4V to 12V, CHARGE up to 14.4V, MAINTAIN between 13V and 13.6V, MONITOR (when there is no incoming power).
• MONITOR : 4 LEDs indicate battery state of charge.
• OBDII ADAPTER : with fuse protection in case of accidental cable damage.
• Universal 12V lead-acid battery Compatibility – Works with STD / flooded / wet-cell with removable filler caps (for adding distilled water) and sealed/maintenance AGM (Absorbent Glass Mat) or GEL.

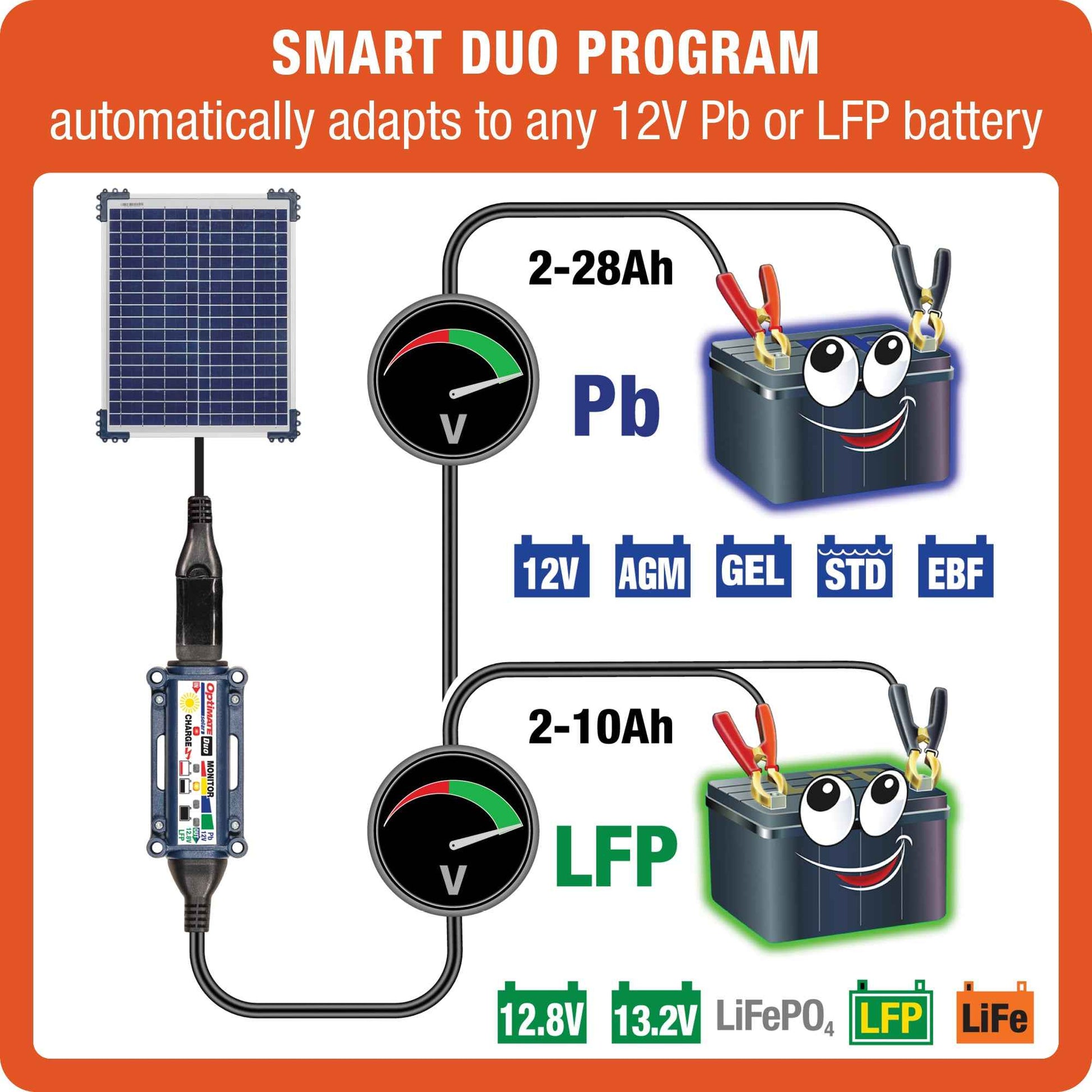

• Lithium LFP/LiFePO4 12.8V/13.2V** Battery Compatibility – Automatically adapts DUO charging algorithm if Lithium LFP battery is sensed, including Lithium friendly 24-7 maintenance. Lithium batteries don't need continuous maintenance charging, OptiMate SOLAR DUO monitors the battery hourly and if it needs charge (below 70%) it brings it back up to 90% for extended life. (Lithium battery capacity and life reduces if kept at 100% when not used). ** nominal voltage is 12.8V (4 x 3.2V), but some battery brands claim 13.2V (4 x 3.3V).
• Safe for Sensitive Vehicle Electronics – No overcharging, spark-suppressed and short-circuit protected.

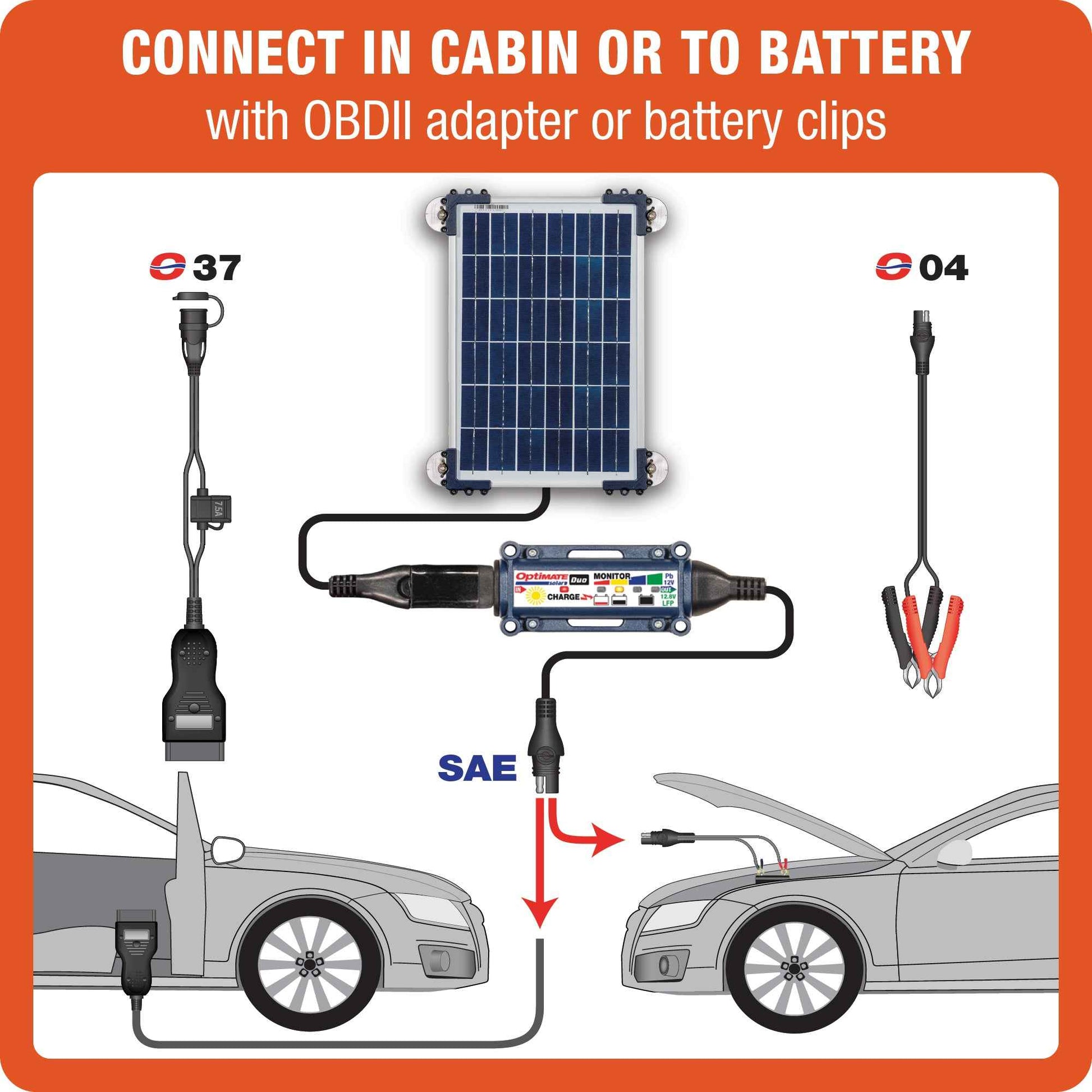

• Plug & Play – Includes an OBDII adapter and a set of battery clamps for quick connect. Store it in the Nylon carry case when not in use.

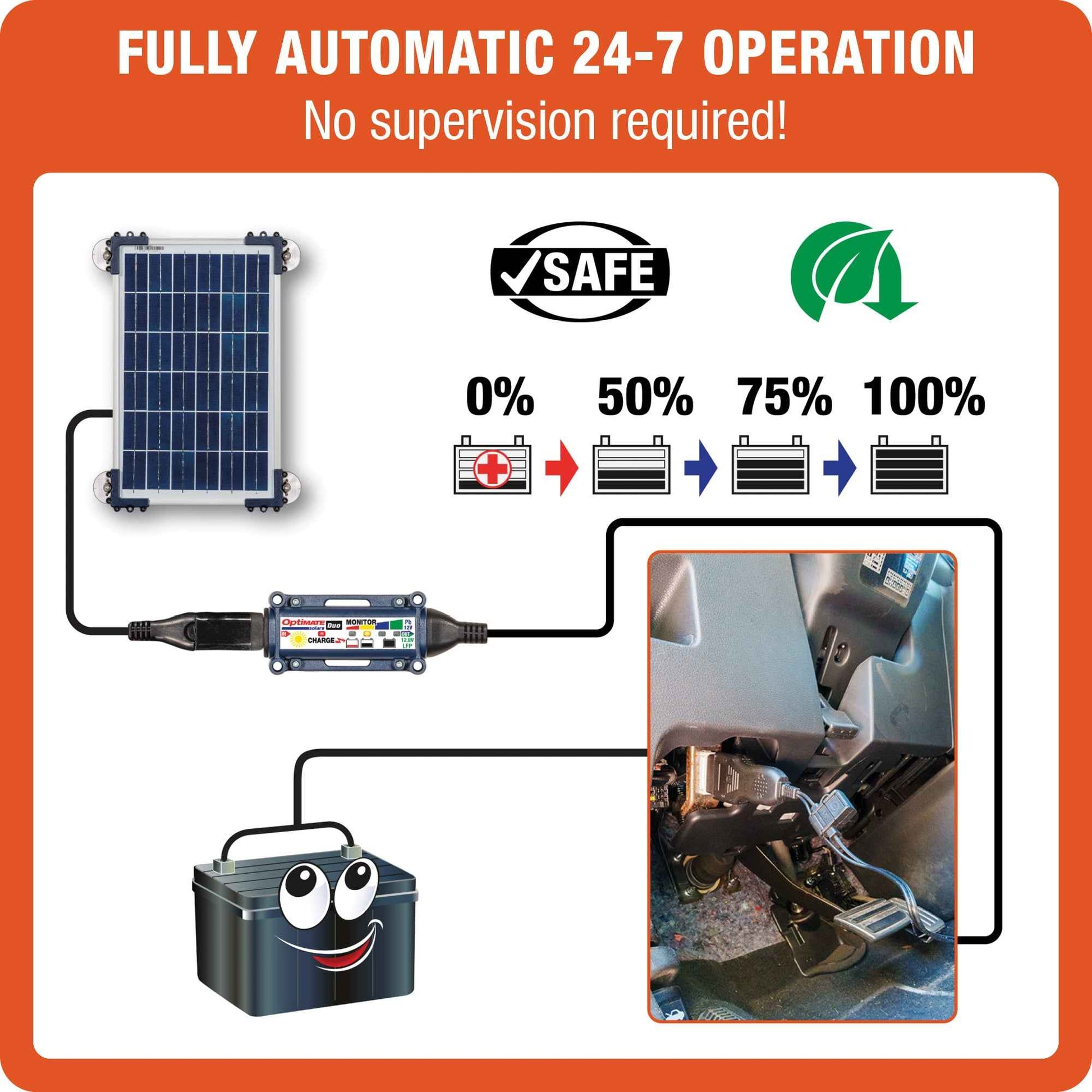

• Connect & Forget - Fully automatic charging and maintenance.
• (Instruction manual pdf)

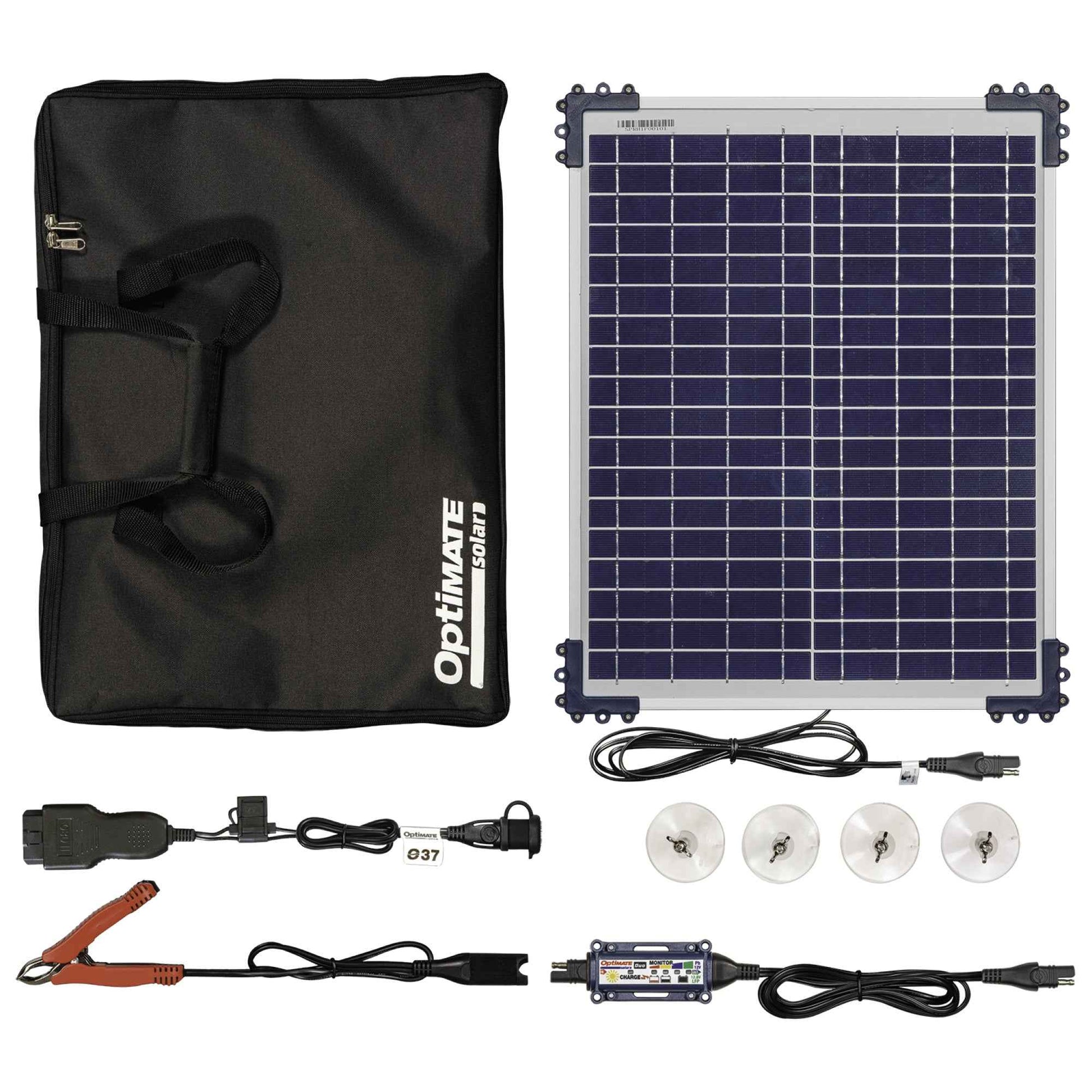

What’s in the Box

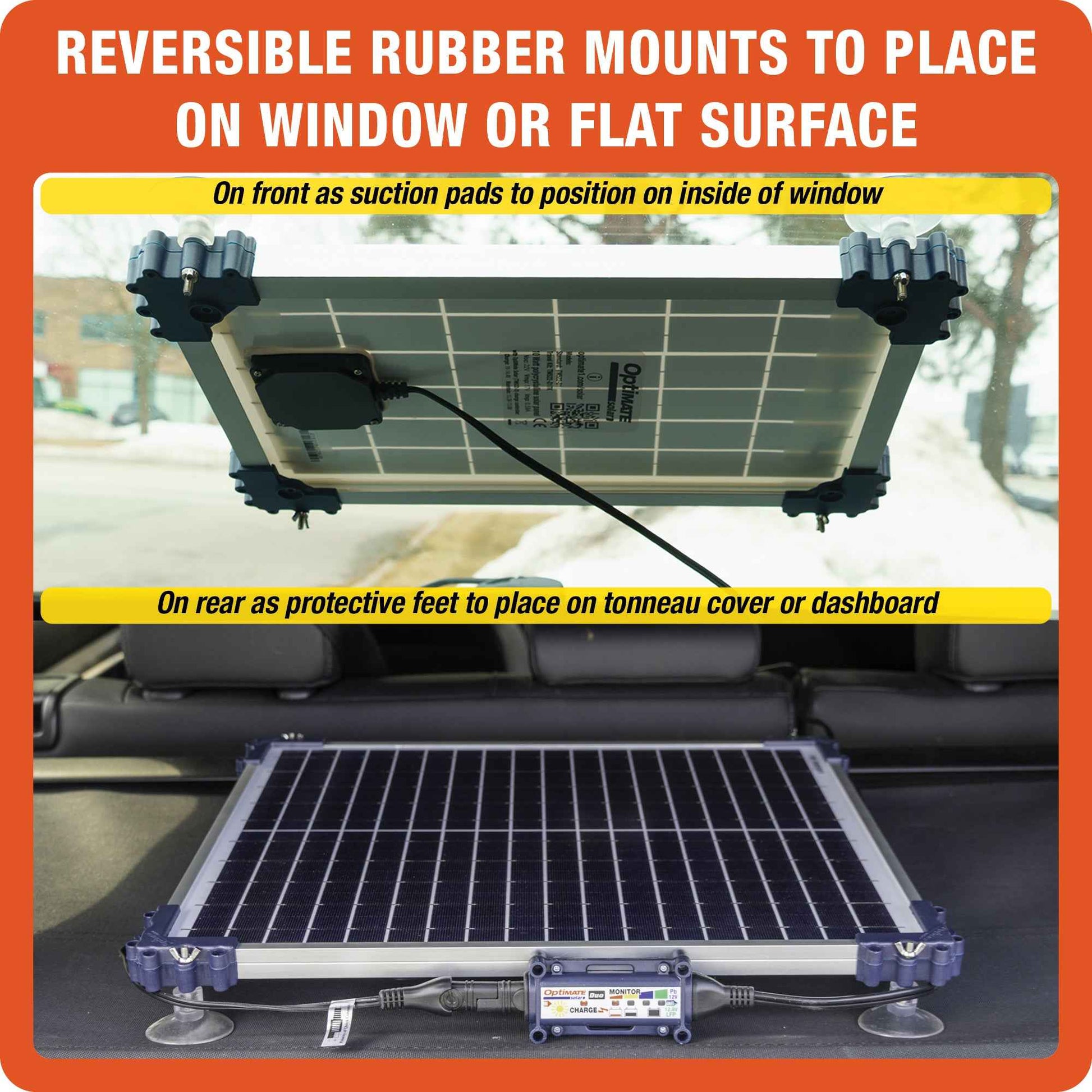

• OptiMate 20W Solar panel with 4 x integrated corner mounts that accept the 4 x silicon rubber suction cups on the front or rear.
• OptiMate Solar TM522-D Smart charge Controller, SAE input and 180cm output cable with SAE connector.
• O-37 OBDII adapter with 7.5A fuse
• O-04 crocodile clips
• Instruction manual
• Nylon storage case with zipper opener and carry handle.
• 3-year limited replacement warranty
