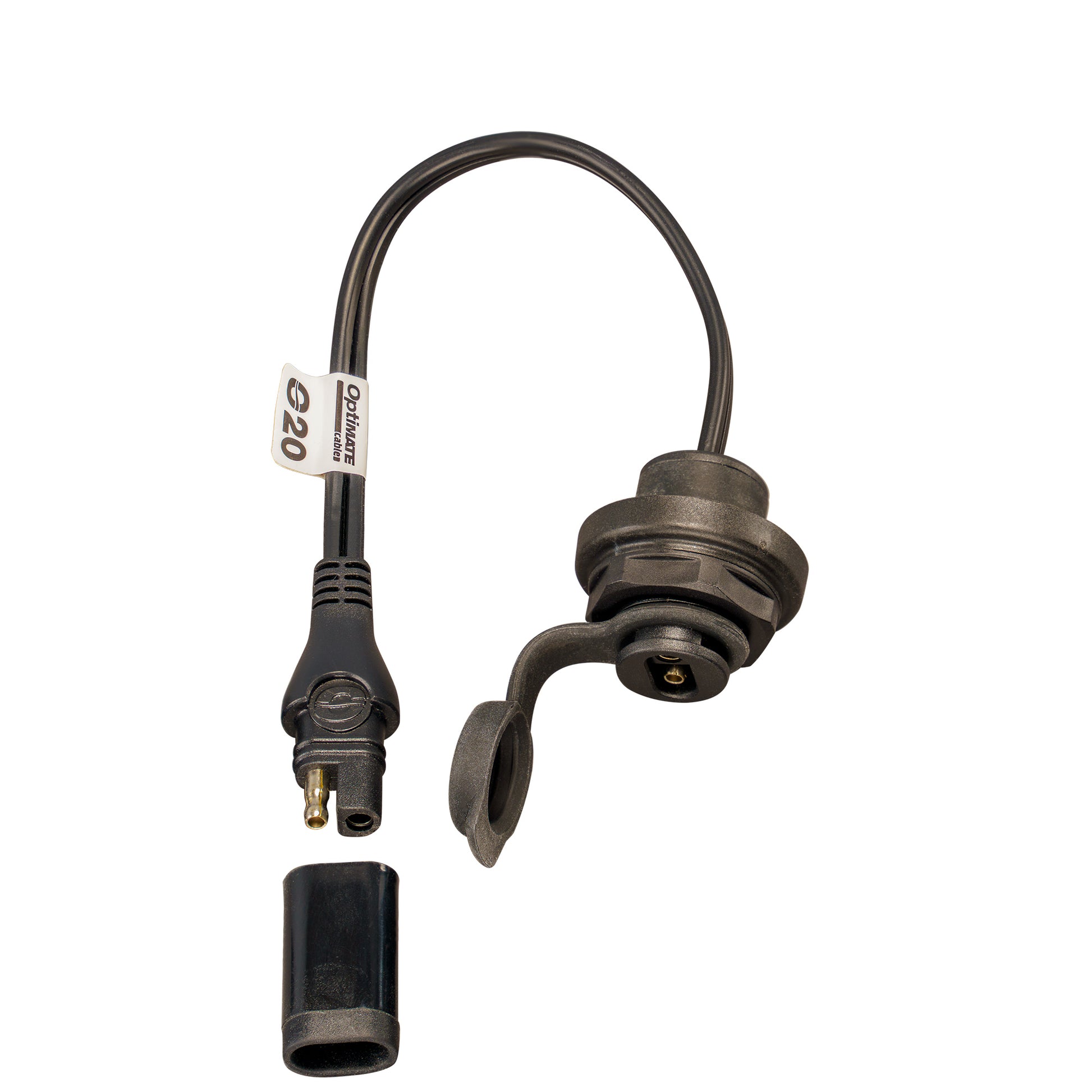

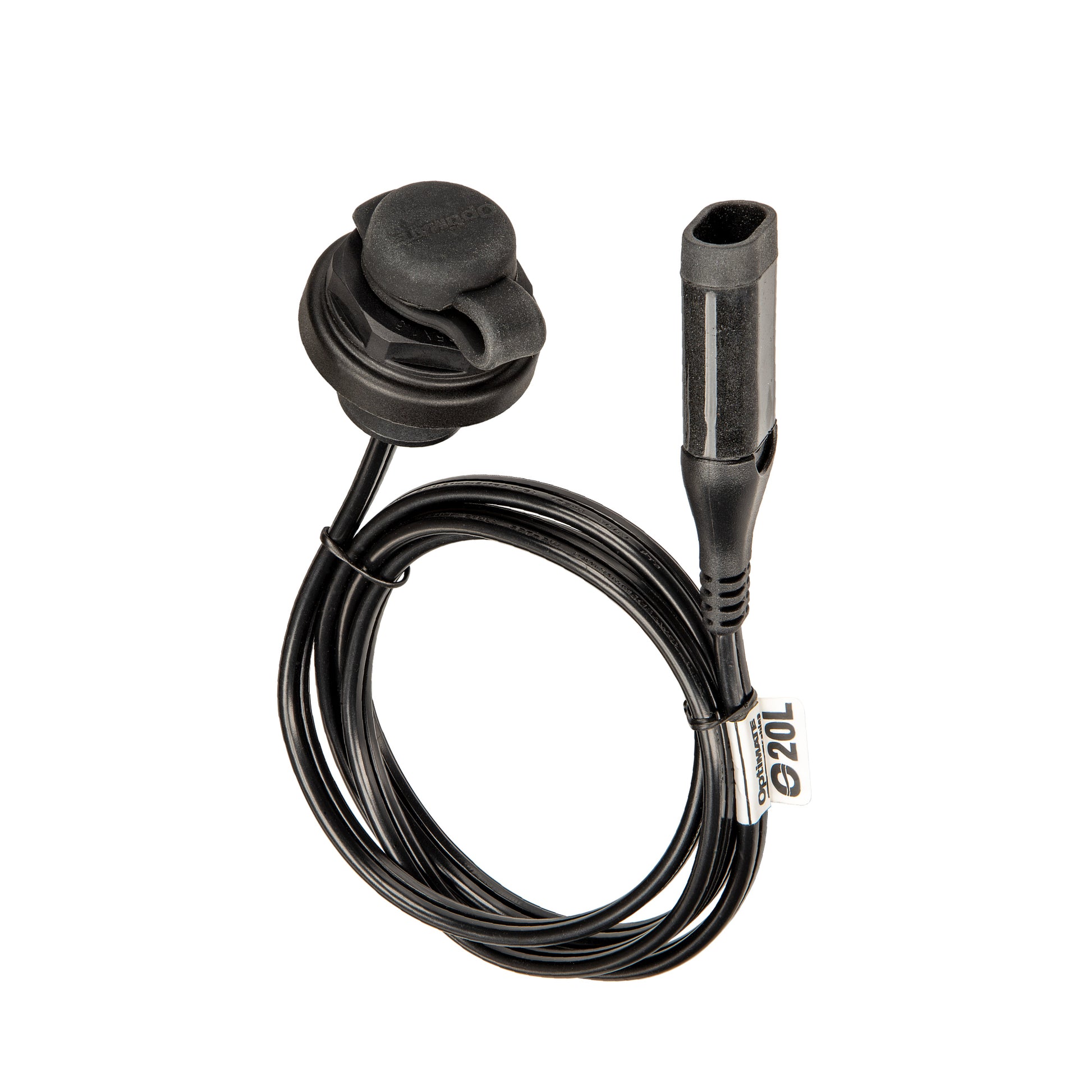

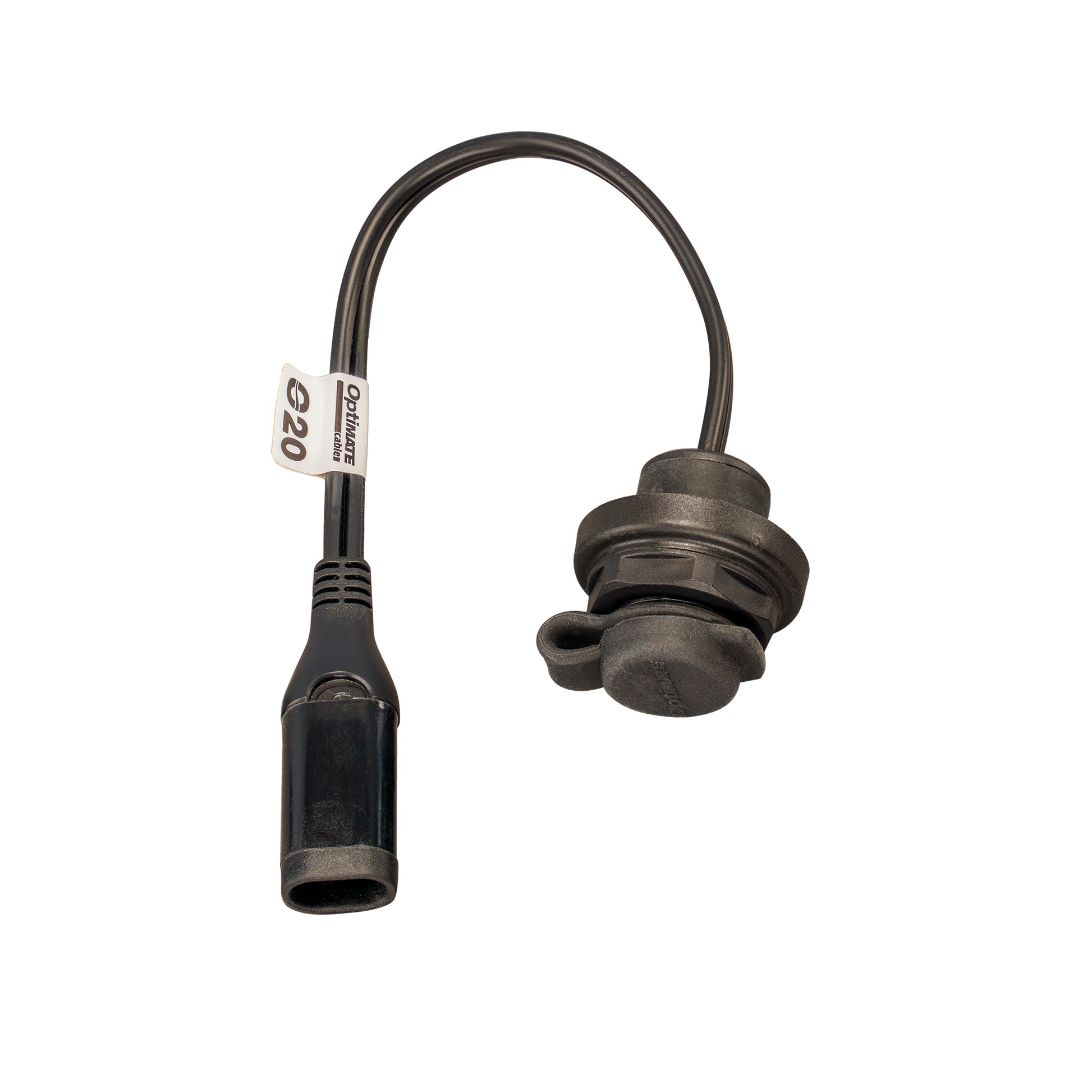

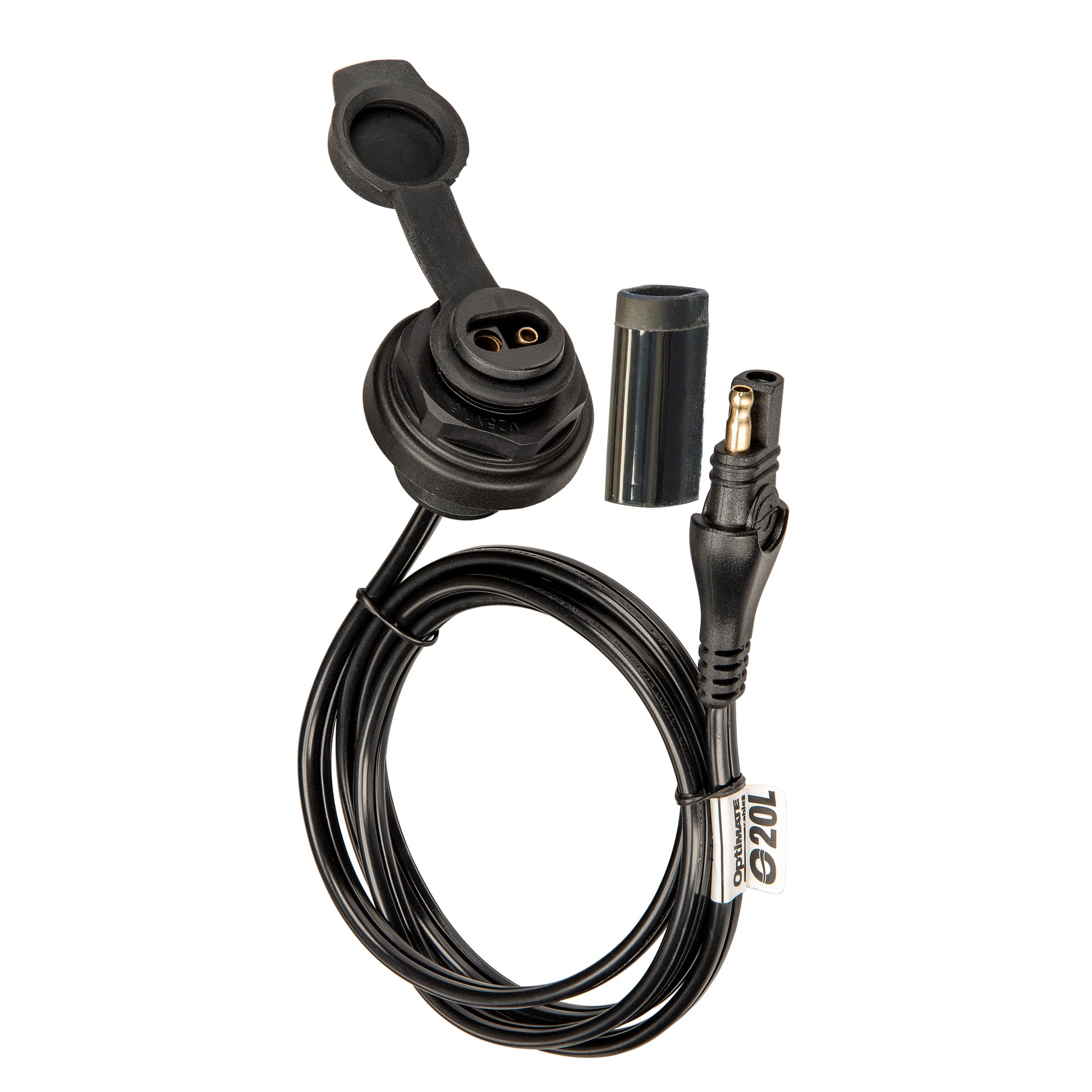

OptiMate Weatherproof SAE socket, front panel mount - CABLE O-20

The OptiMate CABLE O-20 is a weatherproof front panel-mount SAE socket that lets you create a durable bulkhead/panel-mounted SAE power point on motorcycles, trailers, boats or other vehicles. Designed to fit into a 25mm drilled hole, it provides a rugged connection point for SAE-equipped chargers and accessories.

Features and Benefits

• Front panel-mount design — installs into a 25 mm drilled hole, giving you a clean and secure SAE power outlet on bulkheads or panels.
• Rubber expander bushing — secures the connector in the hole for a snug fit and weather-tight seal.
• 16 AWG / 1.31 mm² cable (cable diameter) — strong and reliable for standard 12 V outlet connections.
• Thicker insulation for better protection. SPT-2 (1.2 mm) — enhanced durability and resistance to wear and environmental exposure.
• Current rating: 10A max — suitable for powering SAE-based accessories and battery chargers.
• Weather- and dirt-protected SAE connection system, including an in-line rubber seal, — helps safeguard connections from water, dust and corrosion, making it reliable in harsh or outdoor environments.
• Rated for –40 °C — cable remains flexible even in freezing conditions, ensuring dependable use in cold weather.


What’s in the box

• 1 × OptiMate O-20 weatherproof SAE panel-mount socket (SAE-to-SAE, 30cm cable)
• In-line rubber sealing sleeve for the SAE connector


Warranty

• 3-year limited replacement warranty
