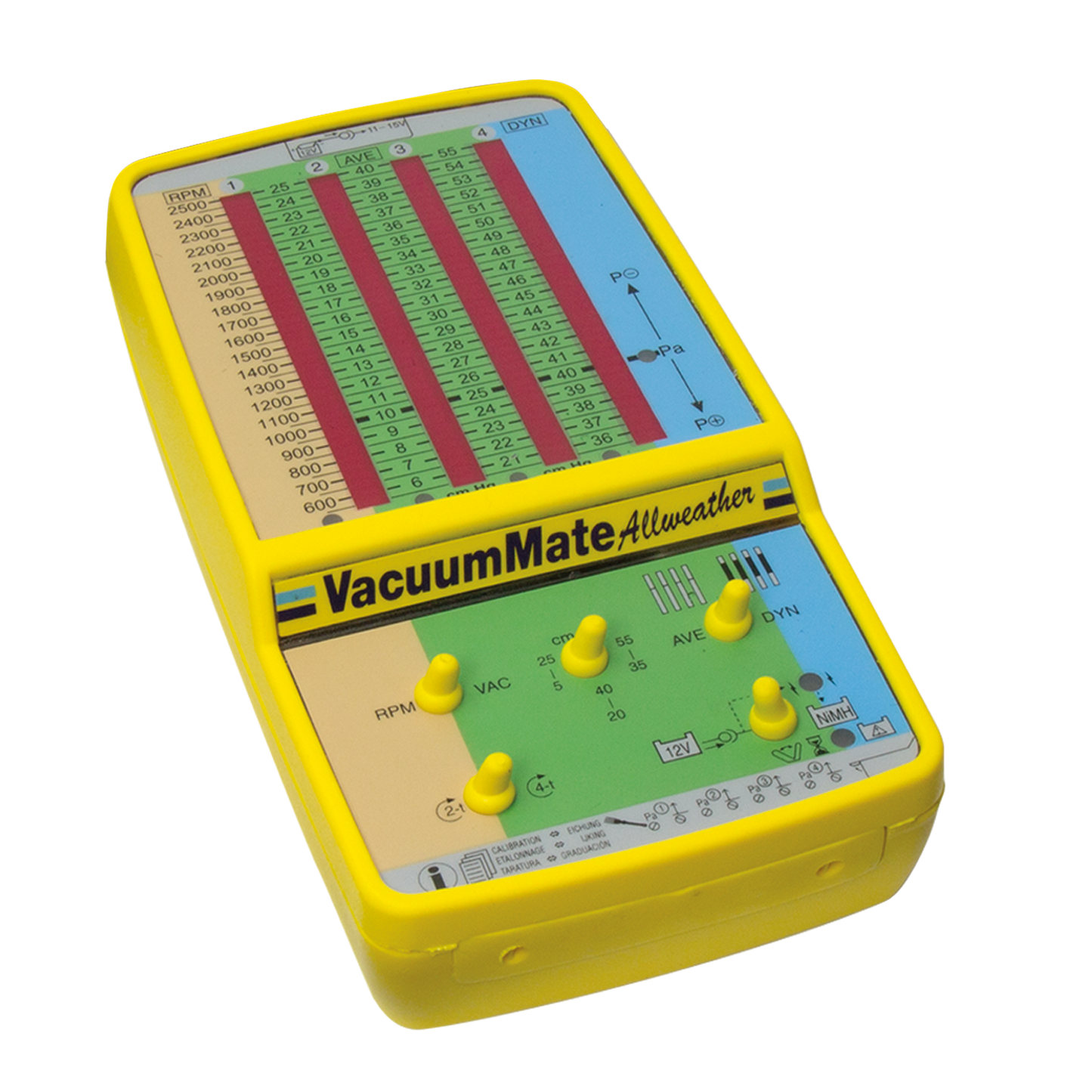

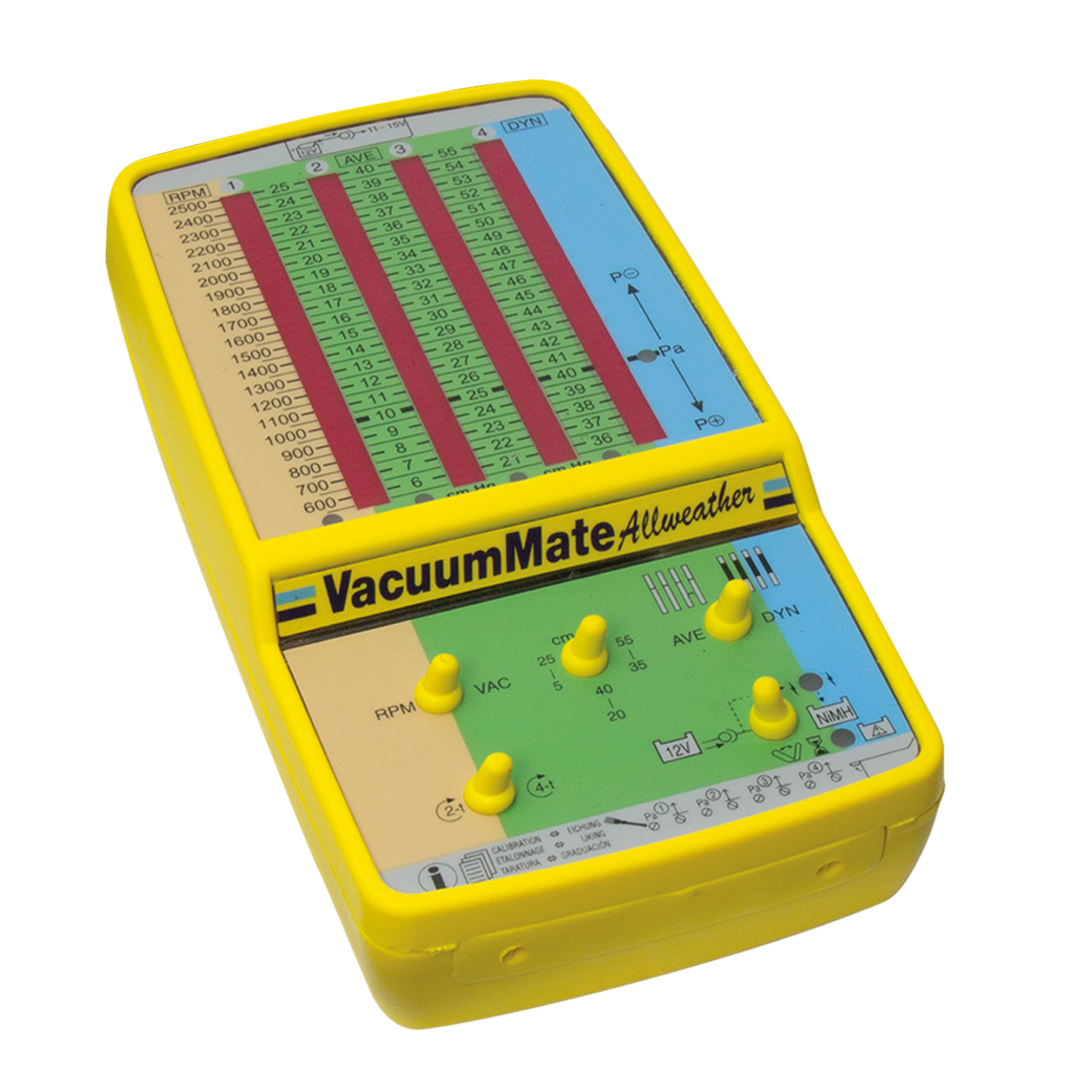

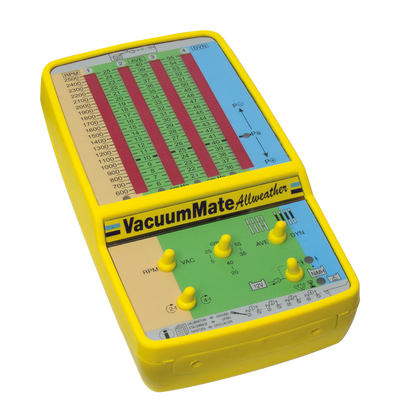

VacuumMate Allweather - TS72KIT

VacuumMate Allweather is the industry standard for fast & accurate synchronizing of up to  4 x carburetor / fuel injection throttle valves on 2 and 4-stroke engines.
VacuumMate displays the individual manifold pressure of 4 separate carburetors (or fuel injection throttle bodies) on four vertically arranged bright LED bars (40 LEDs per bar) visible in sunlight. making it ideal even for on-board marine & external use.

Key features:

Fixed resolution accuracy of 0.5cmHg as recommended by motorcycle and outboard marine OEs.
A built in tachometer displays engine speed in RPM (from pressure pulses, no additional pick-up required).
DYNamic mode to troubleshoot poor engine synchronizing; displays valve sealing differences.
4 x industrial / medical grade MOTOROLA pressure transducers.
Approved as a recommended tool by Mercury, Honda, Yamaha.

Specifications

• CYLINDERS :  4   (6 possible with 4 – 6 cylinder adapter)
• METHOD : Compare and display individual pressures of 4 carburetor / fuel injection manifolds.
• DISPLAY / RESOLUTION : 4 x display of 40 x hi-bright LEDs, fixed 0.5cmHg resolution.
• SELECT / ADJUST :
  • SYNC : 5 – 25cmHg, 20 – 40cmHg, 35 – 55cmHg ranges.
  • RPM : 500 – 2500rpm range,  2 / 4 stroke selector.
  • DYNamic mode for troubleshooting valve sealing.
  • ON/OFF power switch.
• POWER : 7.2V NiMH battery with 6 hour autonomy, recharged from 12V DC (11 – 15Vdc), power can also be drawn from vehicle battery.

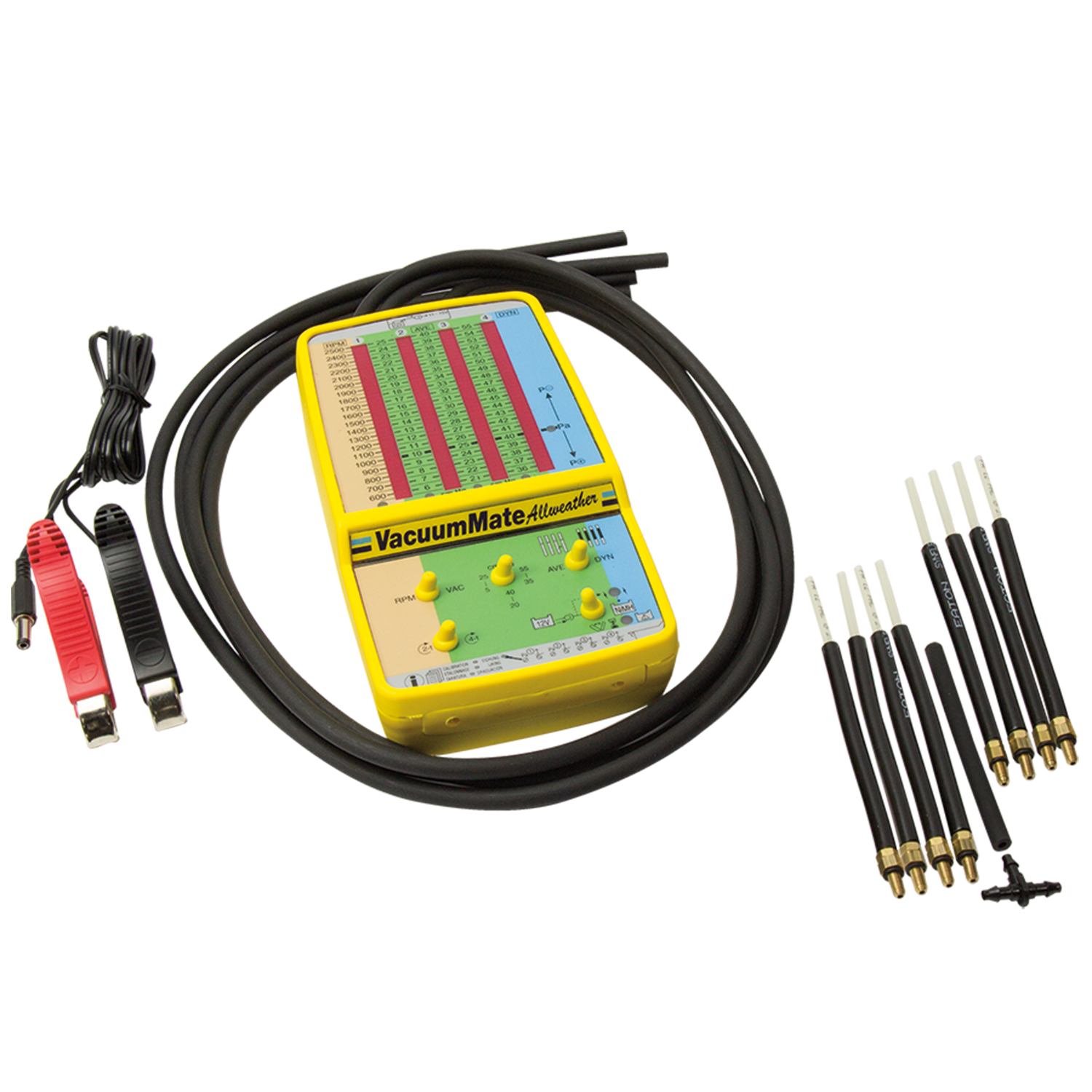

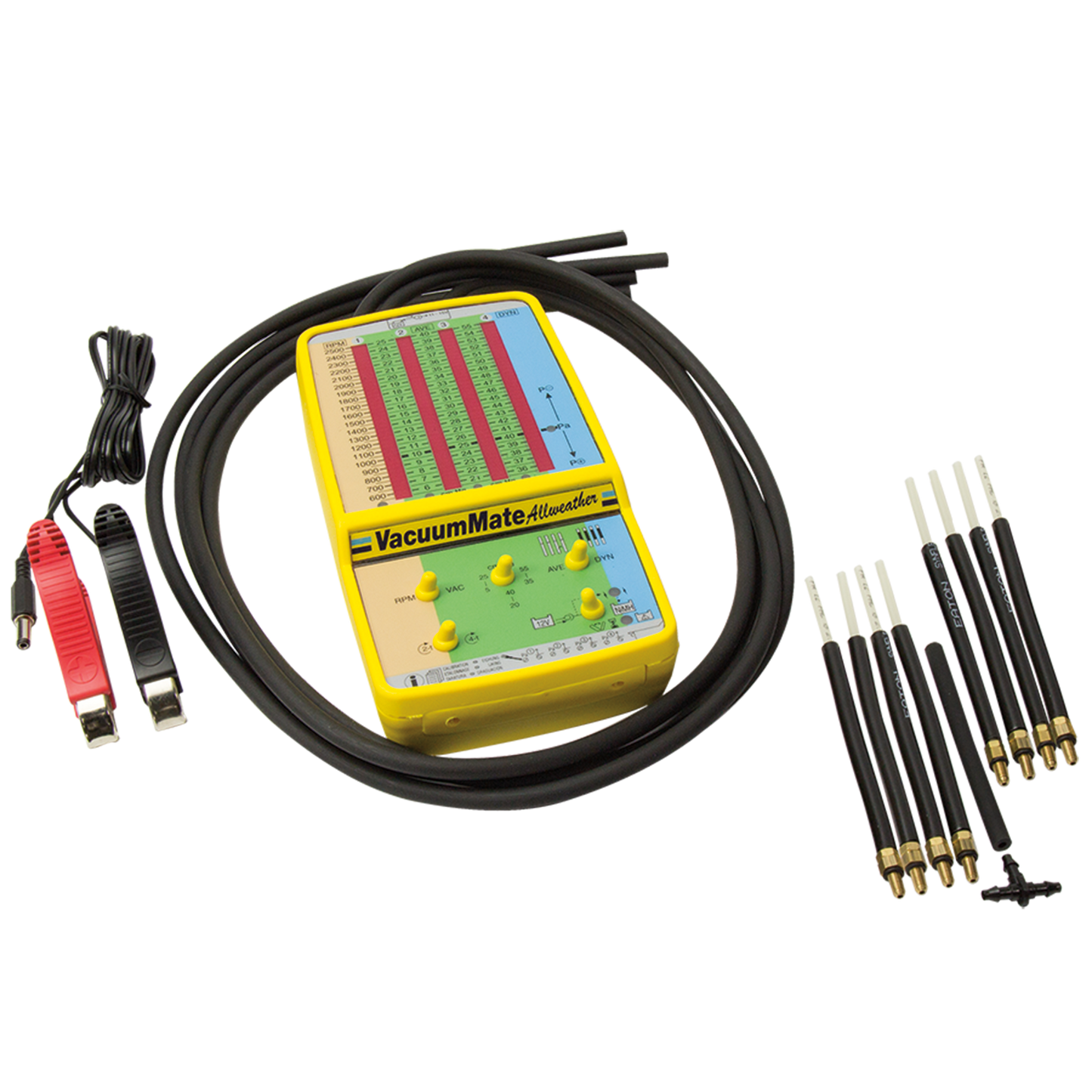

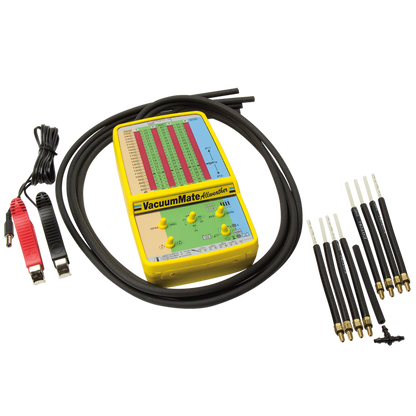

What’s in the Box

• VacuumMate Allweather unit with integrated 4-channel LED display
• Fuel & oil-resistant rubber hoses
• DC supply socket with 200 cm / 6½ ft power lead ending in battery clips
• 4 × M5 flexi-rigid adapters
• 4 × M6 flexi-rigid adapters
• Fuel switch T-piece
• Instructions for use
• 2-year limited warranty
